Euro Inox 1500 Mixer decanter
EUROPE (Western and Northern)

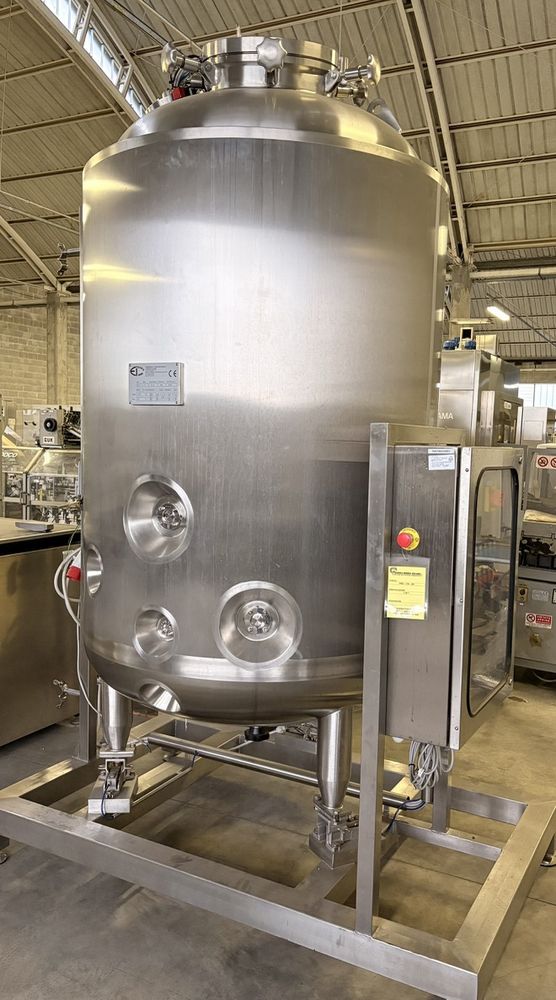

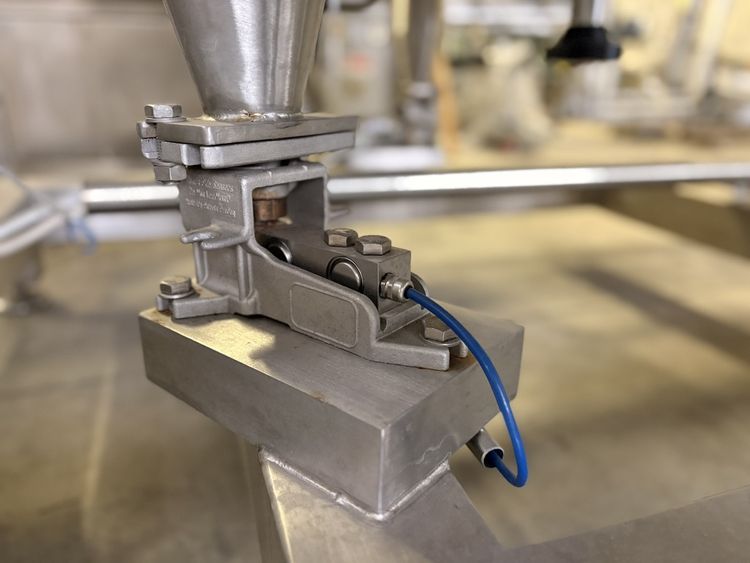

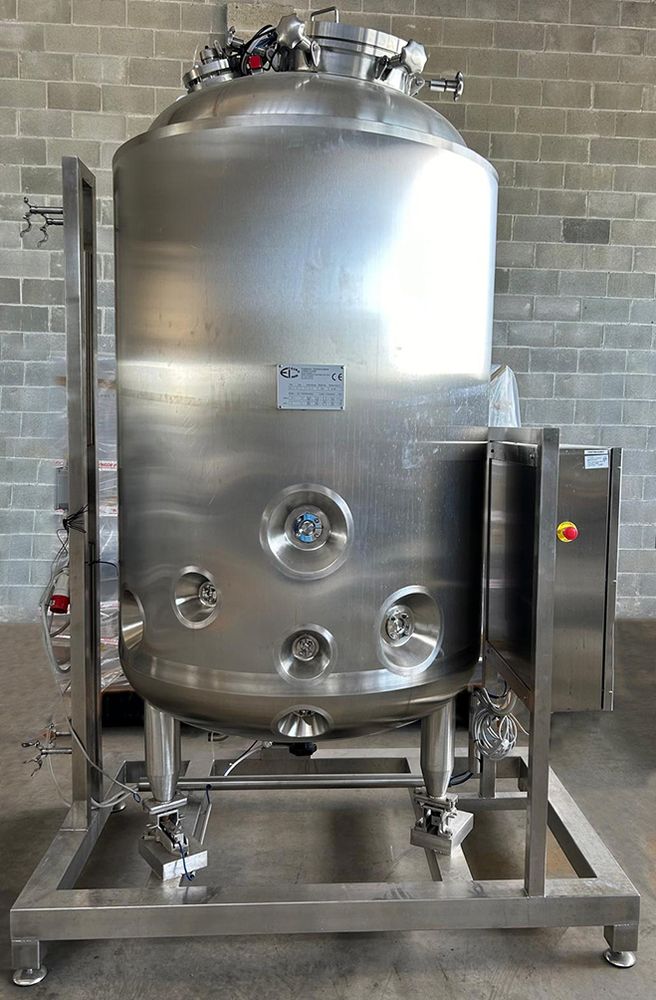

Vertical stainless steel vessel designed for the pharmaceutical sector, equipped with a magnetic drive agitator and an integrated weighing system via three load cells. The tank features an external heating/cooling jacket on dimple channels, AISI 304 stainless steel insulation, and certified safety accessories. The configuration includes a spray ball for CIP cycles and an inspection lamp with sight glass. Comprehensive of material certifications, installed instrument certifications, and PED certification. Main Chamber Capacity: 1,845 lt
Dimple Channels Capacity: 50 lt
Maximum Allowable Pressure (PS) Chamber: 3 bar
Maximum Allowable Pressure (PS) Channels: 4 bar
Temperature Range: -10°C / +144°C
Contact Parts Material: Stainless Steel AISI 316 - 316L
External Structure Material: Stainless Steel AISI 304 - 304L

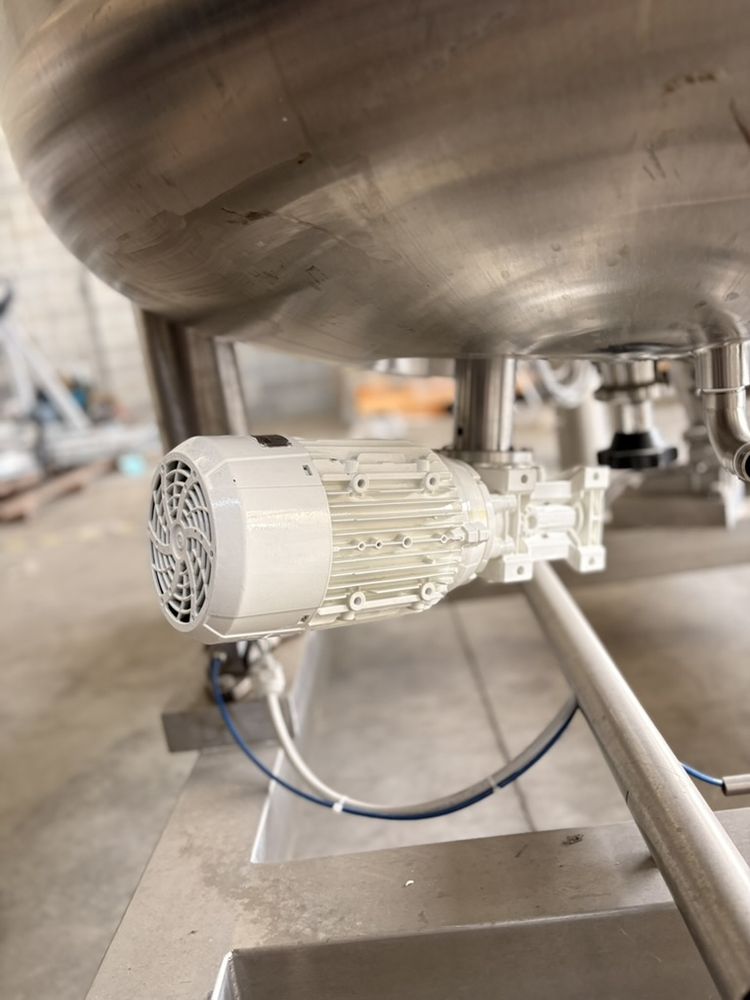

Agitator: Magnetic TM12-A-L065
Internal Diameter: 1,100 mm
External Diameter: 1,270 mm
Total Height: approx. 2,750 mm
Empty Weight: approx. 700 kg
Certification: PED Directive 97/23/CE - Category III (Module B1+F)
Main Chamber Fluid: Pharmaceutical Liquids (Group 2)
Channels Fluid: Water (Group 2)
