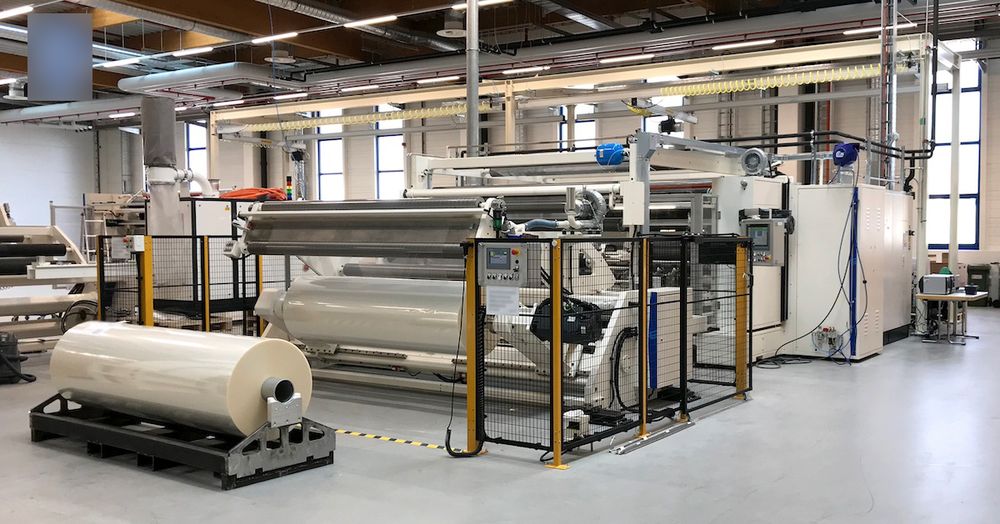

Euromac 2600 TB 2600 mm

AUTOMATIC SLITTER-REWINDER WITH NON-STOP TURRET REWINDER
Reel width: 2600 mm
Max speed: 800 m/min
Electrical primary voltage: 400 V alternating current
Voltage of the auxiliary systems: 230 V WS 24 V GS
Installed power: 93 kW
Compressed air pressure: 6 bar (filtered, dehumidified)

Machine composition:
Unwinder type SV 3.12M
Bridge for web feed-through
Cutting machine TB 3.06T2
Winding turret
Unloader of the finished rolls

PERMISSIBLE ROOM CONDITIONS:
Max. web width: 2600 mm
Max. Diameter of the roll: 1200 mm
Maximum weight of mother reel: 2500 kg
Max. diameter of the reel: 1200 mm
Maximum weight of reel: 2500 kg
Max. diameter of reel in take-up: 500 mm Inner
diameter of the cores in unwinding: 76, 150/152 mm
Inner diameter of the cores in take-up: 120 mm
Speed up to: 800 m/min (depending on material condition)
Electrical supply: 3 x 400 V WS ± 10% - 50 Hz
Voltage of the auxiliary units 230: V WS - 24 V GS
Pneumatic pressure: 6 bar
Total installed capacity: 93 kW
Power consumption: 90.5 kW
Average compressed air consumption: 120 Nl/min.
Average noise level ca.: < 78 dBA
