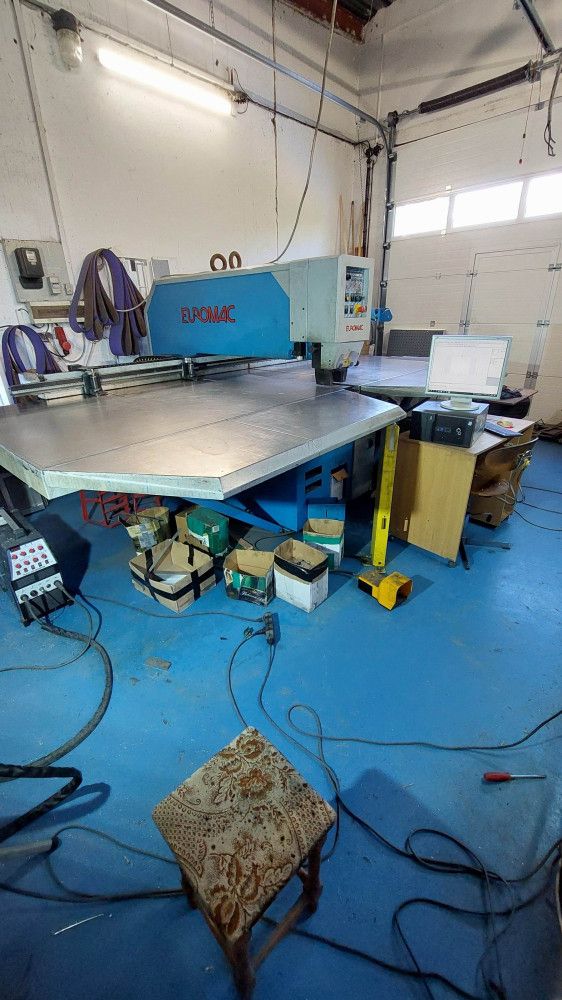

Euromac CX 1000/30 - 2000 300 kN

Press force: 300 kN
X axis travel: 2000 mm
Y axis travel: 1000 mm
Positioning speed: 2.5–50 m/min
Positioning accuracy: 0.1 mm
Electronic Z axis stroke control with measuring system
Maximum tool stroke (TRUMPF system): 60 mm
Maximum tool stroke (AMADA system): 30 mm
TRUMPF tool system
Maximum tool diameter (TRUMPF): 105 mm
Maximum tool diameter (AMADA Station D): 88.9 mm
MULTITOOL MTE6: 6 × 24 mm
MULTITOOL MTE10: 3 × 24 mm + 7 × 8 mm
Hydraulic punch clamping
Hydraulic die clamping
Maximum punching speed: 220 strokes/min
Electric servo axis drives
Maximum sheet size: 1000 × 2000 mm
Maximum sheet weight: 80 kg
Maximum sheet weight with reduced speed: 150 kg
Work table: 4000 × 2220 mm
Machine dimensions: 4000 × 2800 × 1800 mm
Power consumption: 4 kW
Power supply: 3 × 400 V / 50 Hz
Oil capacity: 115 L
Weight: approx. 5250 kg
Fully operational
Currently in production
Computer included
Fabrivin software installed
Eurovin software installed
DXF file import
Automatic tool assignment
Automatic sheet nesting
Large quantity of tooling included
