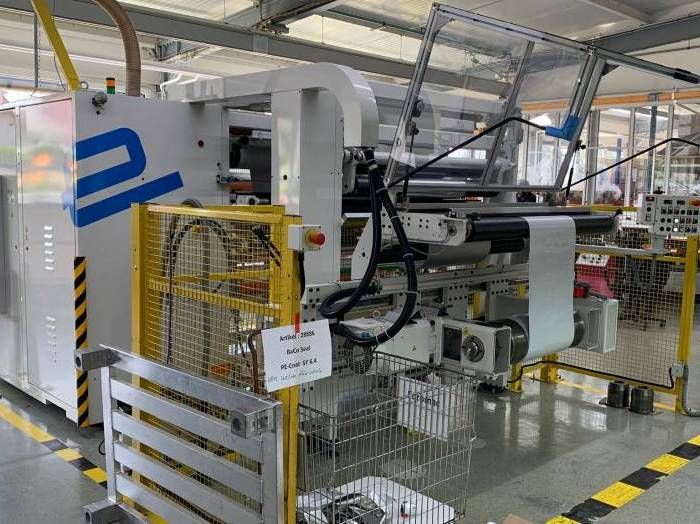

Euromac TB 3.06 iS 1,200 mm

Slitter Rewinder
Central winding on two winding shafts supported by contact rollers.

1. Main technical features
- Maximum working width: 1,200 mm
- Maximum diameter of parent roll: 1,000 mm
- Maximum diameter of finished rolls: 600 mm
- Web tension per winding shaft: 50 – 400 N
- Inner diameter of unwind cores: 152 mm
- Inner diameter of rewind cores: 76 mm

Running speed up to 500 m/min depending on material properties
Number of cuts: 32

- Current type and voltage: 400 V 3-phase 50 Hz, without neutral conductor
- Control voltage: 220 V AC – 24 V DC
- Compressed air: 6 bar
- Machine paint finish: RAL 9002
- Control cabinet paint finish: Integrated into the machine
- Noise level: under 78 dBA

- Printed and unprinted materials: Painted aluminum 25 – 70 μm,
Aluminum laminates 40 – 150g/m2
Embossed aluminum 105 – 160μm

Rewinder: Pneumatic tensioning shafts for 76mm and 150/152mm cores
Friction shafts for 76mm and 150mm cores
The finished rolls are wound onto pneumatic tensioning shafts or friction shafts.
The rolls are removed by pushing them onto an unloading frame.
The machine is driven by AC motors.
The two AC motors of the rewinder are electronically controlled, which automatically reduce the speed of the winding shafts as the rewind diameter increases.
The winding characteristics can be entered and preselected.
The rubberized contact rollers are each mounted on two movable support arms.
The support arms are operated by pneumatic cylinders, which generates a uniform pressure.

Unwinder: Shaftless take-up of the parent roll with take-up heads for 76 mm and 150/152 mm cardboard or steel cores.
Roll weights up to 1500 kg
Narrowest roll width 300 mm
The machine is built as a compact design, with the shaftless unwinder
integrated into the machine frame.
The parent roll is taken up shaftless, using pneumatically tensioned and interchangeable heads with a diameter
of 76 mm and adapter clamping heads with a diameter of 150/152 mm.
These can accommodate cardboard cores.
