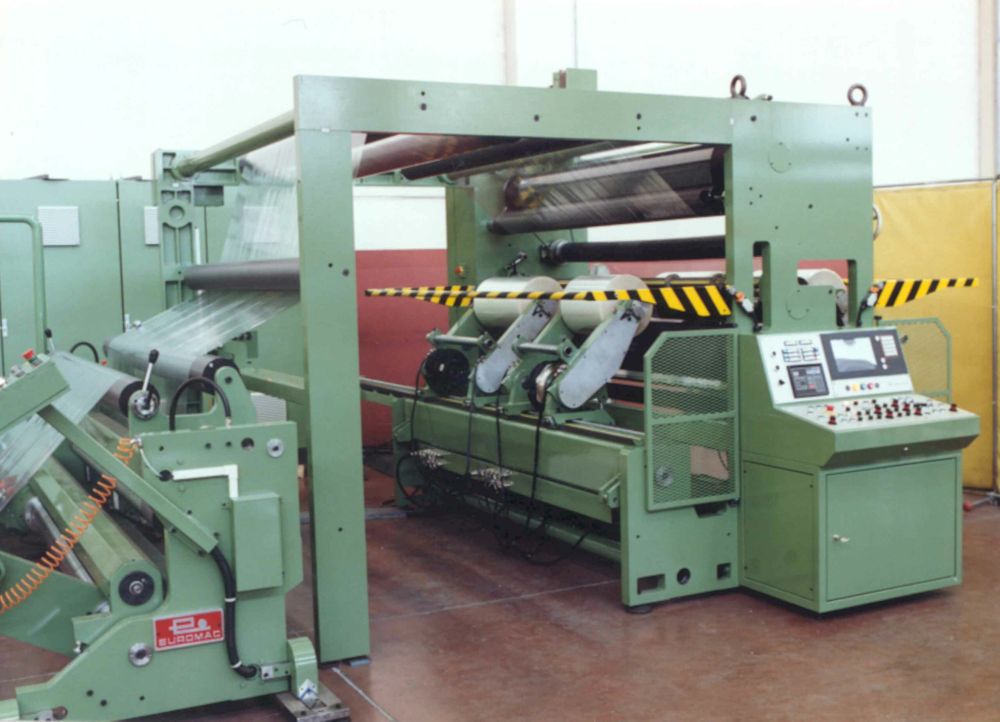

Euromac TB7.08CPM 1000 mm

1.04 Use cases Slitter rewinder
1.05 Maximum unwinder diameter 1000 mm
1.06 Max winder diameter 800 mm
1.07 Internal diameter of unwinding cores 3″ – 6″ – 10″
1.08 Internal diameter of cores being wound 3 ″ - 6 ″
1.09 Mechanical speed (m/min) 450 m / min
1.10 Power supply 3 x 400V, 50Hz
1.13 Compressed air supply 6 bar
1.14 Web guide Brand: Fife
1.15 Material Paper and plastic films
1.16 Max. working width 2200 mm
1.17 Winding stations N° 5
1.18 Unload reels Yes
1.19 Min/max cutting width 300 - 600 mm
1.20 Cutting group Doctor blades
1.21 Accessories :
N° 2 trolleys for unloading reels
N° 6 blade holders
N° 1 oscillating device for blades
