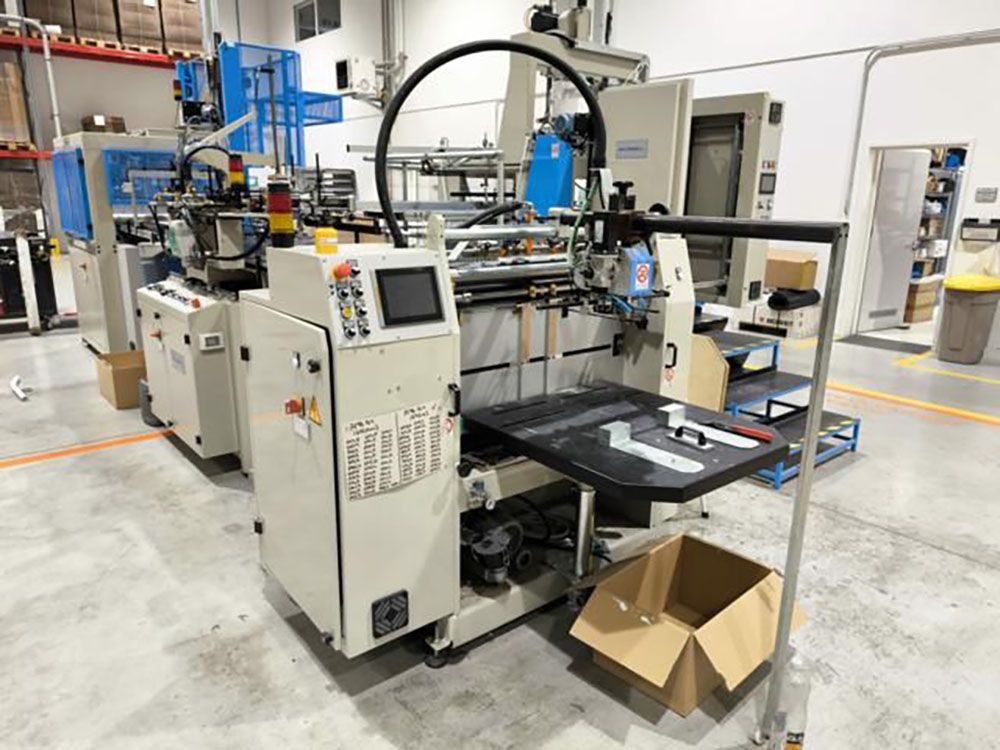

Europrogetti EP-175 600 x 415 x 185 mm

Max. box size: 600 x 415 x 185 mm (length x width x height)
Min. box size: 50 x 30 x 12 mm (length x width x height)
Speed: up to 34 cycles per minute
Max. cardboard stack height: 970 mm
Max. roll diameter with adhesive tape: 400 mm
Max. stack height with cover: 350 mm
Max. cover format: 900 x 720 mm
Min. cover format: 123 x 88 mm
Max. cover weight: 300 gsm
Cardboard thickness: 0.8 - 3.0 mm
Dimensions: L = 7.59 m x W = 4.39 m x H 3.82 m
Net weight: 6.0 T
Power consumption: + / ¬ 11.8 Kw
Air: 5 ¬ 7 bars
Fully PLC controlled and operated line.
Direct diagnostic system via internet connection
