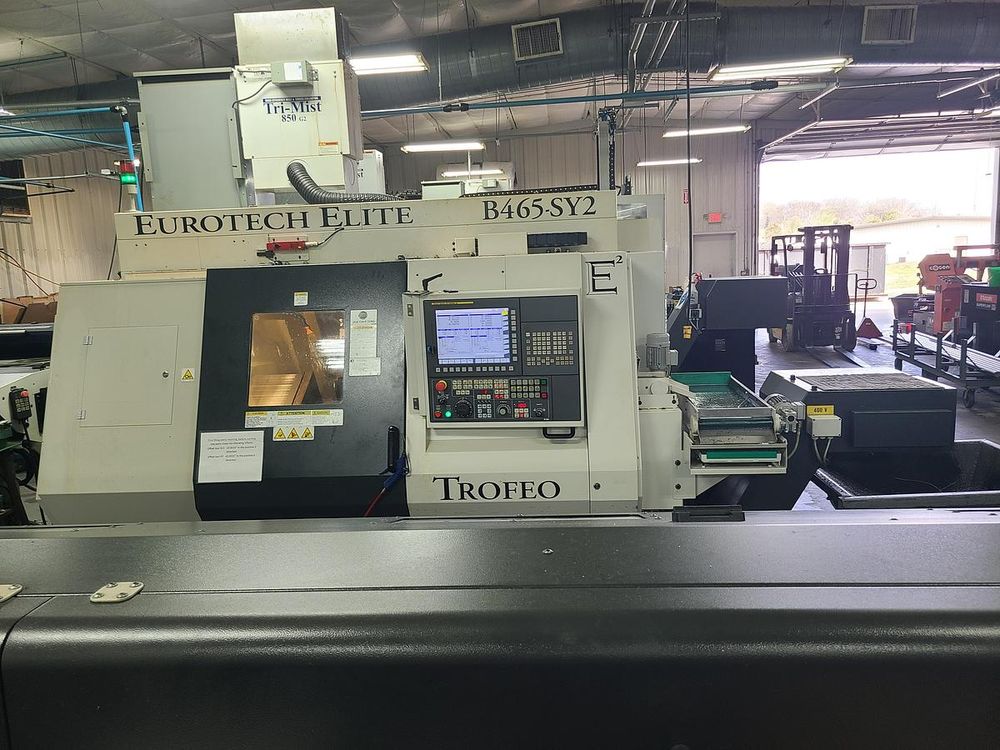

Eurotech Fanuc 31iB CNC control 4000 RPM B465-SY2 TROFEO 2 Axis

Bar capacity: 2.56 inch
Distance between centers: 37.5 inch
Swing over diameter: 20 inch
Main spindle speed: 4,000 RPM
Main spindle nose: 6" ASA
Main spindle bore: 3.15 inch
Main spindle motor: 35 HP
Sub spindle speed: 5,000 RPM
Sub spindle nose: 5" ASA
Sub spindle bore: 2.17 inch
Sub spindle motor: 15 HP
Number of turret stations: 12
Maximum number of tools: 192
Turret indexing time (1 position): 0.15 seconds
Number of live tool stations: 24
Maximum number of live tools: 48
Live tool speed (standard): 4,000 RPM
Live tool speed (max): 6,000 RPM
Spindle center height: 42 inch
Machine dimensions with chip conveyor: 173 x 85 x 89 inch
Machine weight with chip conveyor: 17,900 lbs

Tri-Mist 850 G2 mist collector
12-foot Edge Patriot 551 magazine barfeed
LNS magnetic chip conveyor
Standard chip conveyor
EU-1000-2 HP coolant system
Royal QG-65 main spindle collet chuck
Royal QG-42 sub-spindle collet chuck
Coolant through sub spindle
200mm ejector option
Fargo DA 51XN1/FE transformer
Osterle X axis live tools 300-5501-E32 B109 Qty 9
P144-00118 double outlet radial Qty 5
P144-00901 3-position ID block Qty 1
Radial toolholders 10.57.82.00 Qty 2
Boring bar holders 1¼” h=100mm 10.88.39.00 Qty 3
Boring bar holders 1¼” h=80mm 10.57.84.00 Qty 3
Cut-off toolholders 10.57.85.00 Qty 2
Toolholders 10.88.01.00 Qty 2
Toolholders 20x20 for sub-spindle 10.88.14.00 Qty 4
Coolant plugs 10.57.84.03.1 Qty 2
