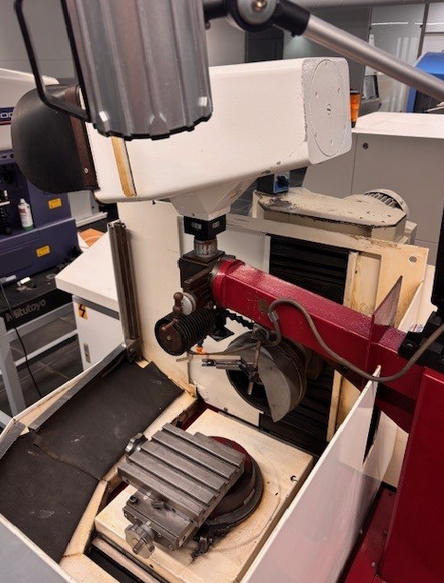

Ewag RS 12
Ref :
2747304-3-MT
Condition :
Used
Manufacturer :
Ewag
Model :
RS 12
Year(s) :
1989
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X axis stroke range: 220 mm
Y axis height adjustment: 130 mm
Z axis radius adjustment: 0.01-49 mm
Z axis adjustment accuracy: 0.01 mm
Slide retraction to measuring position: max 49 mm
Cross table clamping surface: 155x205 mm
X-Y adjustment range: 60 mm each
Maximum swivel angle (B axis): 260°
Spindle inclination (A axis): -10° to +27°
Spindle adjustment accuracy: 1 min
Spindle speeds: 1000-8000 rpm
Spindle motor power: 2.2 kW
Oscillation stroke: 0-30 mm
Oscillation frequency: 30/60 rpm
Connection voltage: 380 V
Weight: 1200 kg
Several grinding discs supplied (no workpiece holder)
