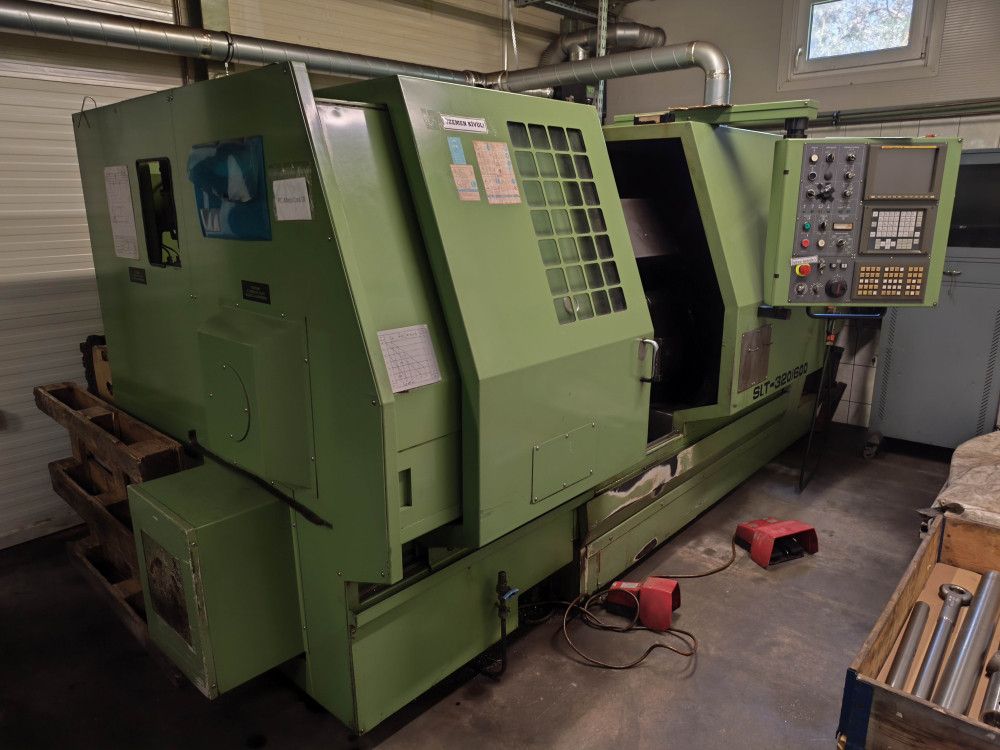

Excel FANUC 0i-TB Variable EXCEL CSEPEL - SLT-320/600 2 Axis

swing diameter
- over bed 450 mm
- over slide 270 mm

workspace
- transverse stroke X 250 mm
- longitudinal stroke Z 600 mm

main drive
- type ALPHA P 40/6000i
- power P 100 % ED 18.5 kW
- power 60 % ED, 30 min 22 kW
spindle speed 35-4000 min
- torque available from spindle (100 % ED) 307.2 Nm
- torque available from spindle (60 % ED) 365.4 Nm

spindle
- spindle end according to DIN 55026 A8
- spindle bearing bore 110 dia.mm
- spindle bore diameter 82 dia.mm
- max. bar diameter 70 dia.mm

tool system
- COMBI system (programmable) TS 200
- number of tool positions 12
- tool holder dimensions according to DIN 69880
- cylindrical tool connection 40 dia.mm
- time of one position change (from release to clamping) 0.22 s
- max. turning diameter of the tools held in the tool holders 510 dia.mm
- shank cross-section of the turning tools that can be held in the tool holder 25 x 25 mm
tailstock MK4
- tailstock sleeve stroke 150 mm
- tailstock sleeve diameter 90 mm
- tailstock sleeve inner cone MK4
- max. clamping force 1000 daN
- tailstock transmission manual
- sleeve operation hydraulic

cooling
- cooling system max. fluid flow 40/25 l/min/m
machine dimensions (without chip container)
- weight 5250 kg
- length 3550 mm
- width 1850 mm
- height 2140 mm

operation climate
- temperature limits 15-35 °C
- relative humidity 20-75 %
- max. 8 hours 95 %
