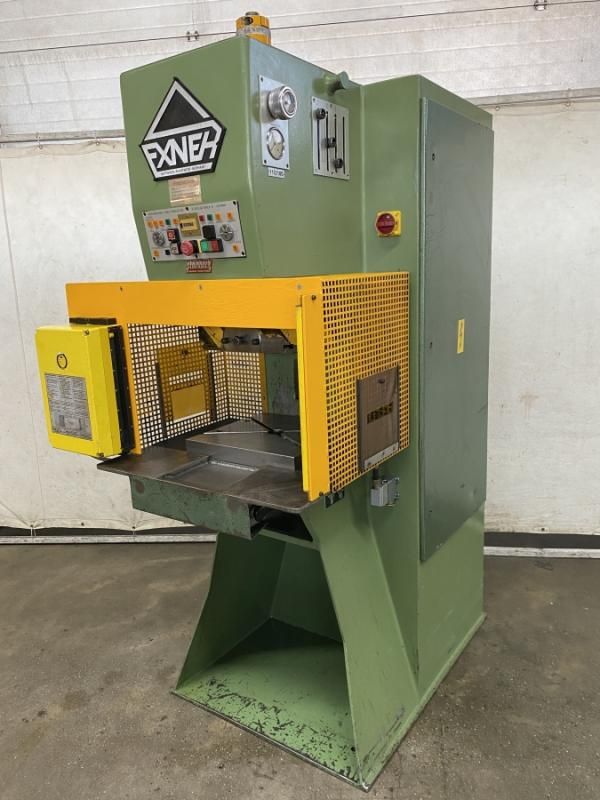

Exner EEX 20 S 20 ton

Press Force: 20 ton
Throat Depth: 180 mm
Table Surface: 380 × 350 mm
Table Opening: Ø 50 mm
Ram Surface: 310 × 250 mm
Clamping Pin Diameter: Ø 35 mm
Ram Stroke: 100 mm
Max Installation Height: 250 mm
Table Height: 900 mm
Downward Speed: approx. 480 mm/s
Upward Speed: approx. 480 mm/s
Working Speed: 20 mm/s
Hydraulic Tank Capacity: 110 L
Hydraulic Operating Pressure: 200 bar
Motor Power: 4 kW
Power Supply: 400 V, 50 Hz
Two-Hand Operation Stroke Release
Light Curtain: SICK LVU
1-Stroke Mode
2-Stroke Mode
Protection Function
Rapid Stroke
Working Stroke
Pressure-Dependent Stroke Limitation
Position-Dependent Stroke Limitation
Mechanical Adjustable Fixed Stop
Manual Press Force Adjustment via Knurled Wheel
Side-Mounted Electrical Cabinet
Operating Manual
Electrical Wiring Diagram
Stroke Counter
Machine Dimensions: 1250 × 750 × 2000 mm
Machine Weight: 1.4 t
