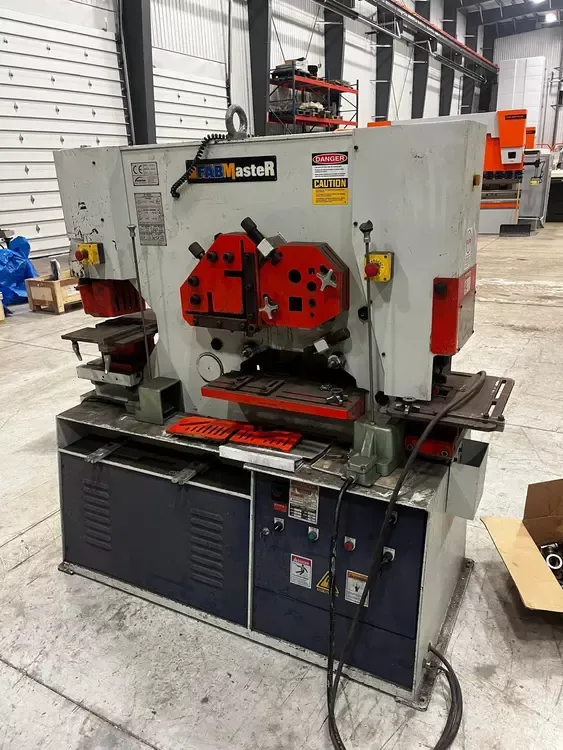

Fabmaster IW-88S 88 t

Punching force: 88 t
Punching capacity: Ø26 x 22 mm
Punching capacity: Ø50 x 12 mm
Throat depth: 310 mm
Maximum stroke length: 100 mm
Punching cycles per minute (15 mm stroke): 29
Flat bar shearing capacity: 460 x 15 mm
Flat bar shearing capacity: 300 x 20 mm
Blade length: 465 mm
Angle shearing capacity at 90°: 152 x 152 x 13 mm
Angle shearing capacity at 45°: 80 x 80 x 10 mm
Round bar shearing capacity: Ø45 mm
Square bar shearing capacity: 45 x 45 mm
Rectangular notching capacity: 50.8 x 90 x 12 mm
Motor power: 10 hp
Voltage: 575 V
Net weight: 2360 kg

Two-pedal operation
Five work stations
Integrated notching station
Large punch table with multipurpose bolster
Removable block for channel and beam flange punching
Punch, shear and notch tables with stops and guides
Adjustable stroke control
Power inching function
Curved shear blade
Four-sided cutting blades
Angle iron mitre cutting
Adjustable length stop
Electronic back gauge
Magnetic halogen work lamp
Fully guarded work stations
Filtered hydraulic system
Punches and dies included
