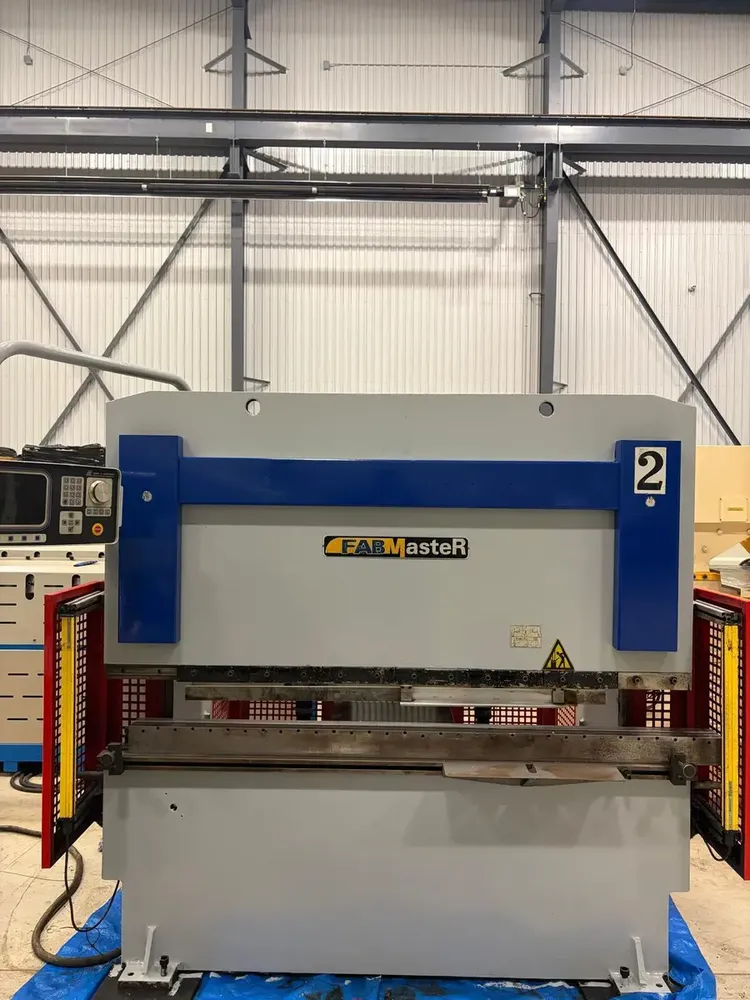

Fabmaster PPT 44-6 44 ton
Ref :
2796632-3-GO
Condition :
Used
Manufacturer :
Fabmaster
Model :
PPT 44-6
Pressure :
44 ton
Year(s) :
2004
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Hydraulic press brake
2-axis (Y–X) backgauge control (COMP-U-BEND 61000)
Max tonnage: 44 ton
Bending length: 79"
Distance between housings: 64"
Throat depth: 8"
Stroke: 5"
Backgauge stroke (X): 20"
Bending speed: 10 mm/sec
Voltage: 575V / 3PH / 60Hz
Full load current: 7A
Circuit protector: 10A
PSI: 60,000 psi
Machine dimensions: 70" × 95" × 80"
Machine weight: approx. 5,500 lbs
