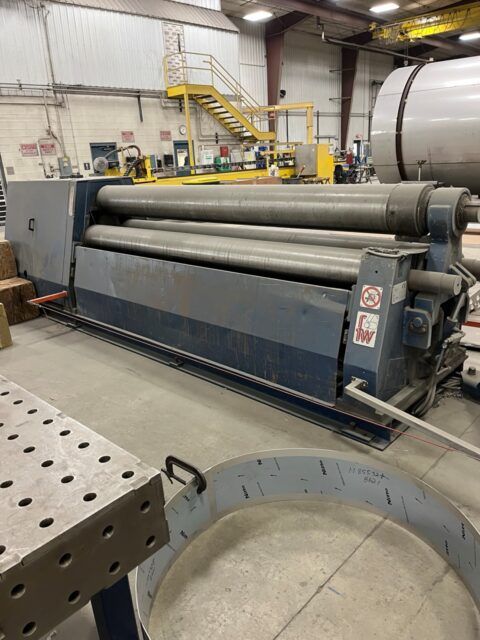

Faccin 3HCD

Faccin 3HCD
Year: 2005



Maximum Bending Length: 3,100 mm (approximately 122 inches)
Maximum Bending Thickness (Mild Steel): 12 mm (approximately 0.472 inches)
Top Roll Diameter: Estimated around 285 mm (11.22 inches)
Side Roll Diameter: Estimated around 265 mm (10.43 inches)
Roll Configuration: 3-roll initial pinch
Length: Approximately 5,500 mm (216.5 inches)
Width: Approximately 1,800 mm (70.9 inches)
Height: Approximately 1,800 mm (70.9 inches)
Weight: Approximately 9,000 kg (19,841 lbs)
