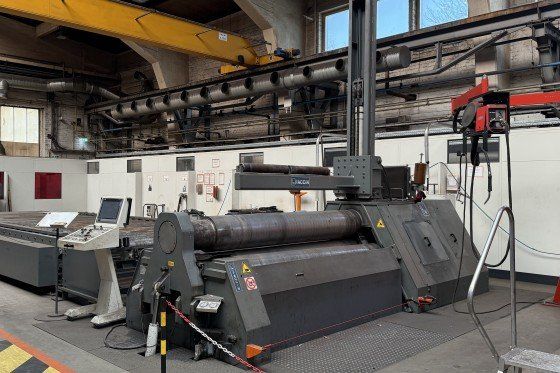

Faccin 4HEL 2539

Rolling width: 2500 mm
Rolling thickness (3x top roll Ø): 24 mm
Rolling thickness (5x top roll Ø): 28 mm
Prebending thickness: 24 mm
Top roll diameter: 390 mm
Bottom roll diameter: 370 mm
Side roll diameter: 295 mm
Number of rolls: 4
Rolling speed: 0 – 5
Lower roll adjustment: 0 – 200 mm/min
Side rolls adjustment: 0 – 200 mm/min
Control: Siemens PGS Classic TOUCH
Top support: Yes
Side supports: Yes
Number of driven rolls: Yes
Power: 30 kW
Machine length: 6200 mm
Machine width: 2200 mm
Machine height: 3800 mm
Machine weight: 18000 kg
Top support height: 3000 mm
Side support with infeed fingers: 3 ton
Roller conveyor: 7500 x 2500 mm
Fully hydraulic system: Yes
Central lubrication: Yes
