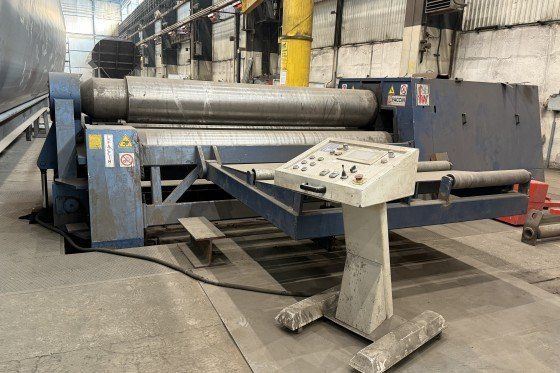

Faccin 4HEL 3149

Rolling width: 3050 mm
Rolling thickness (3x top roll Ø): 40 mm
Rolling thickness (5x top roll Ø): 42 mm

Prebending thickness: 36 mm
Top roll diameter: 490 mm
Bottom roll diameter: 470 mm
Side roll diameter: 370 mm
Number of rolls: 4
Rolling speed: 3–6

Lower roll adjustment: 0–300 mm/min
Side rolls adjustment: 0–300 mm/min
Control: PGS Classic
Number of driven rolls: 2
Power: 50 kW
Side support: 5000 kg
Top roll max load: 550 ton
Operator panel: PSG Classic
Hardened rolls
Conical bending attachment

Machine length: 7600 mm
Machine width: 2600 mm
Machine height: 2500 mm
Machine weight: 34000 kg

Bending capacity (yield 260 N/mm²): 42 × 2450 mm full length
Bending capacity (yield 260 N/mm²): 36 × 637 mm diameter
Bending capacity (yield 360 N/mm²): 36 × 2450 mm full length
Bending capacity (yield 360 N/mm²): 31 × 637 mm diameter
