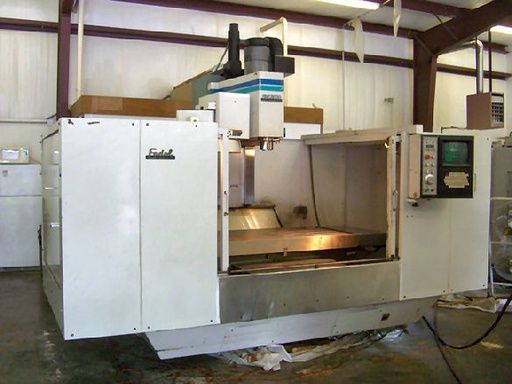

Fadal 6030 3 Axis

FADAL 6030
1996

X axis travel: 60 in
Y axis travel: 30 in
Z axis travel: 30 in
Table size: 62.5 in x 30 in
Spindle speed: 10 – 10,000 rpm
Spindle taper: CAT 40
Spindle nose to table distance: 5.5 in – 35.5 in
Spindle motor power: 22.5 hp
Spindle torque: 220 ft-lbs
Tool capacity: 21 tools
Table load capacity: 4,120 lbs
Rapid traverse rate: 400 in/min
Maximum tool diameter (adjacent): 3 in
Maximum tool diameter (non-adjacent): 6 in
Maximum tool length: 15 in
Maximum tool weight: 15 lbs
Machine dimensions: 158 in x 103 in x 122 in
Machine weight: 17,000 lbs
Control: FADAL 88HS
Monitor: 12 in monochrome CRT
Graphic display
Rigid tapping
Coolant through spindle
Fourth axis prewire
High torque spindle motor
High speed CPU
Operating condition light (blue)
Full enclosure
Box way construction
Installed: December 1996
Power on hours: 12,580
Run hours: 3,207
