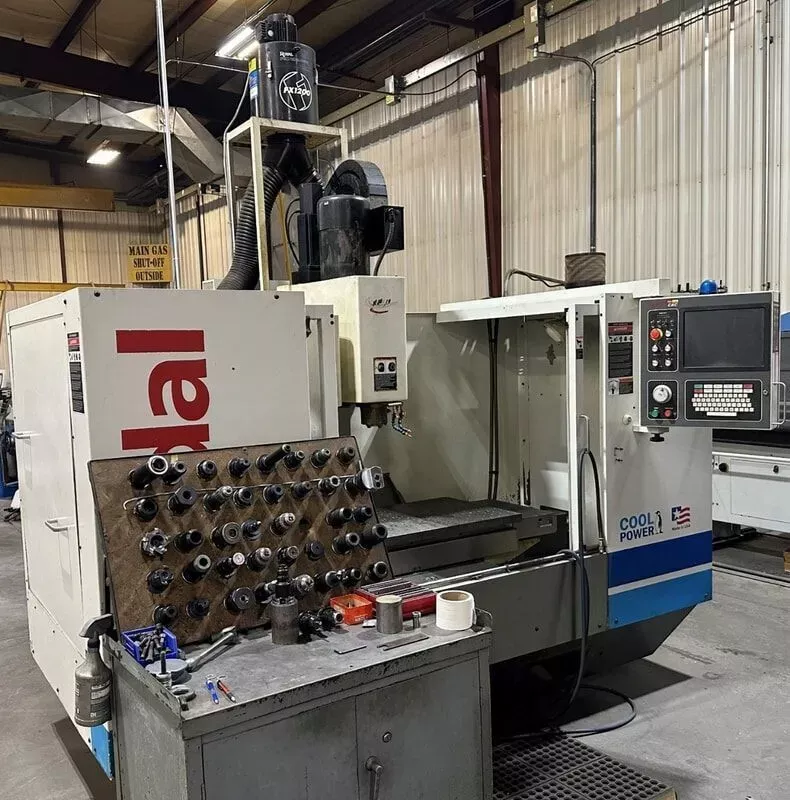

Fadal VMC-4020HT 3 Axis

Fadal VMC-4020HT
2004

Table Size: 48" x 20"
Table Load Capacity: 3,966 lbs
T-Slots: 5 x 0.70" x 3.75"
Floor to Table Surface: 30.98"
X-Axis Travel: 40"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Cutting Feed Rate (X/Y/Z): 0.0098 – 400 ipm (600 ipm at 150%)
Rapid Traverse Rate (X/Y): 900 ipm
Rapid Traverse Rate (Z): 700 ipm
Spindle Speed Range: 10 – 10,000 RPM
Spindle Taper: CAT 40
Spindle Motor Power: 22.5 HP
Spindle Nose to Table Distance: 4.01" – 24.01"
Spindle Center to Column Ways: 20"
Automatic Tool Changer Positions: 21
Max Tool Diameter: 2.99" (5.98" without adjacent tools)
Max Tool Length: 15"
Max Tool Weight: 16.3 lbs
Ball Screw Diameter (X/Y/Z): 1.57"
Air Pressure Requirement (Momentary): 116 psi
Electrics: 240V
Machine Dimensions: 117" L x 88" W x 110" H
Machine Weight: 11,500 lbs
Coolant Filtration System
Fadal Multi Processor CNC Control
