Fadal VMC-5020A with Rotary Table 3 Axis

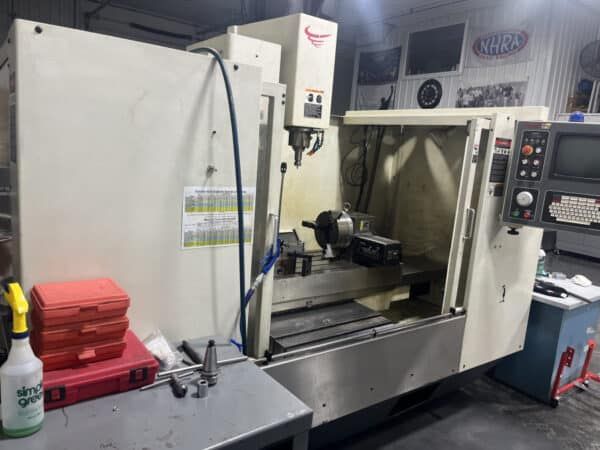

Fadal VMC-5020A with Rotary Table
2001

Table Work Surface57″ x 20″
Max. Table Load3000 lbs.
X Axis Travel50″
Y Axis Travel20″
Z Axis Travel20″
Spindle Nose to Table4” – 24”
Spindle Center to Column20”
RapidsX, Y 900 / Z 700 IPM
Spindle Speed 10 – 7,500 RPM
Main Motor15 HP
Number of Tools21 ATC
Max Tool Diameter / Without Adjacent Tool3” / 4.5”
Max. Tool Weight15 lbs
Spindle TaperCAT 40
Machine Dimensions116” x 87” x 114”
Weight11,500 lbs
Equipped With (subject to buyer verification):
Fadal MP-CNC Control
Fadal Rotary Table
