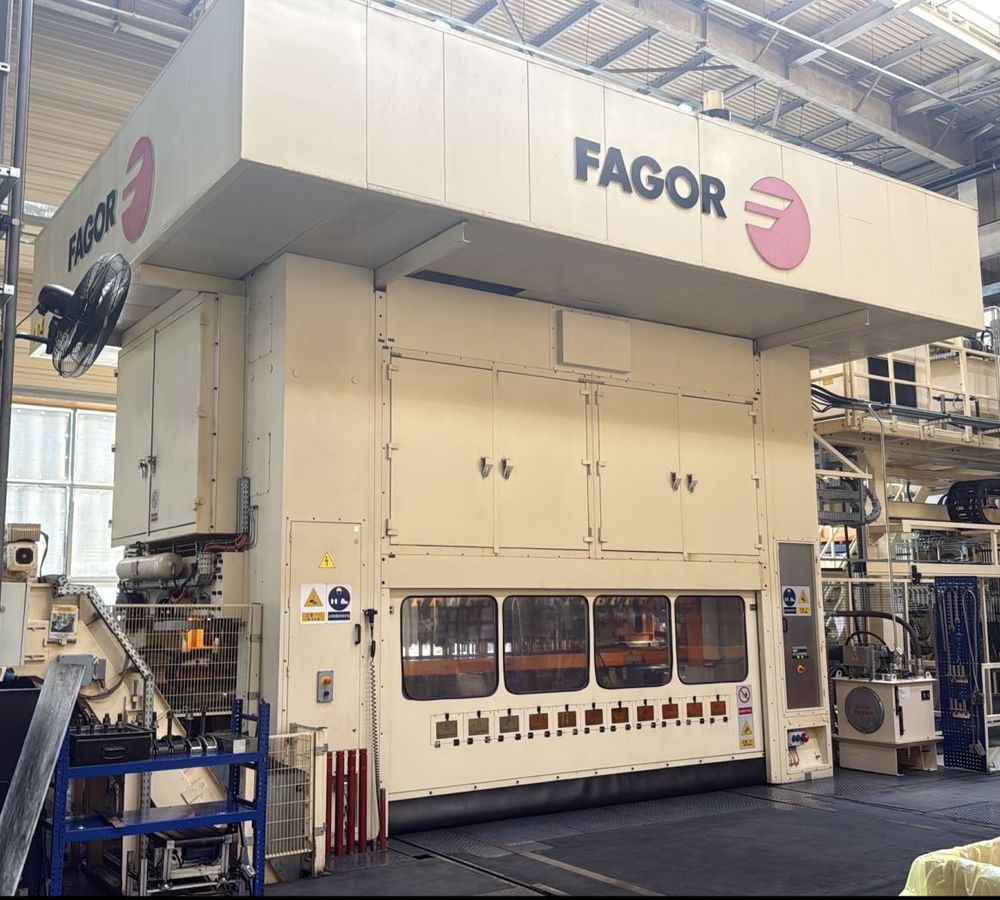

Fagor TSE2-1000-4000-1600 1000 t

Total force: 1000 t
Table length: 4000 mm
Table width: 1600 mm
Ram stroke: 400 mm
Shut height: 766 mm
Control: PLC SIEMENS S7-1500F
Press design: Transfer press
Drive type: Mechanical
Openings in uprights: Yes
Opening in table: Yes
Moving bolster: Yes
Number of tables: 2
Ram adjustment: 100 mm
Strokes per minute min: 8
Strokes per minute max: 50
Hydraulic overload protection: Yes
Clamping surface left-right: 4000 mm
Clamping surface front-back: 1600 mm
Height above floor level (table): 600 mm
Distance between columns (H-frame): 4250 mm
Free passage between side columns: 1800 mm
Maximum tool weight: 20000 kg
Inner width clamping rails closed: 500 mm
Inner width clamping rails open: 1300 mm
Total power consumption: 200 kW
Mains power supply: 350 kVA
Mains voltage: 400 V
Mains frequency: 60 Hz
Space requirement length: 7500 mm
Space requirement width: 4800 mm
Height above floor level: 7360 mm
Height under floor level: 4000 mm
Total weight approx.: 250000 kg
Light barrier: Yes
Cutting impact damping system: Yes
Automatic tool clamping device: Yes
Transfer system: Yes
Lubrication: Continuous circulating lubrication system
Ram weight compensation: Pneumatic cylinders
Automatic pressure setting: From tool memory
LED tool room lighting: Yes
Auxiliary control panels: 2
Scrap deflectors: Yes
Press force measuring device: Yes
KTI vibration dampers: Yes
Transfer step: 0-800 mm
Transfer beam distance: 500-1300 mm
Lifting stroke: 0-150 mm
T-shaped front travel moving bolsters: 2 units
Maximum upper section tool weight: 10000 kg
