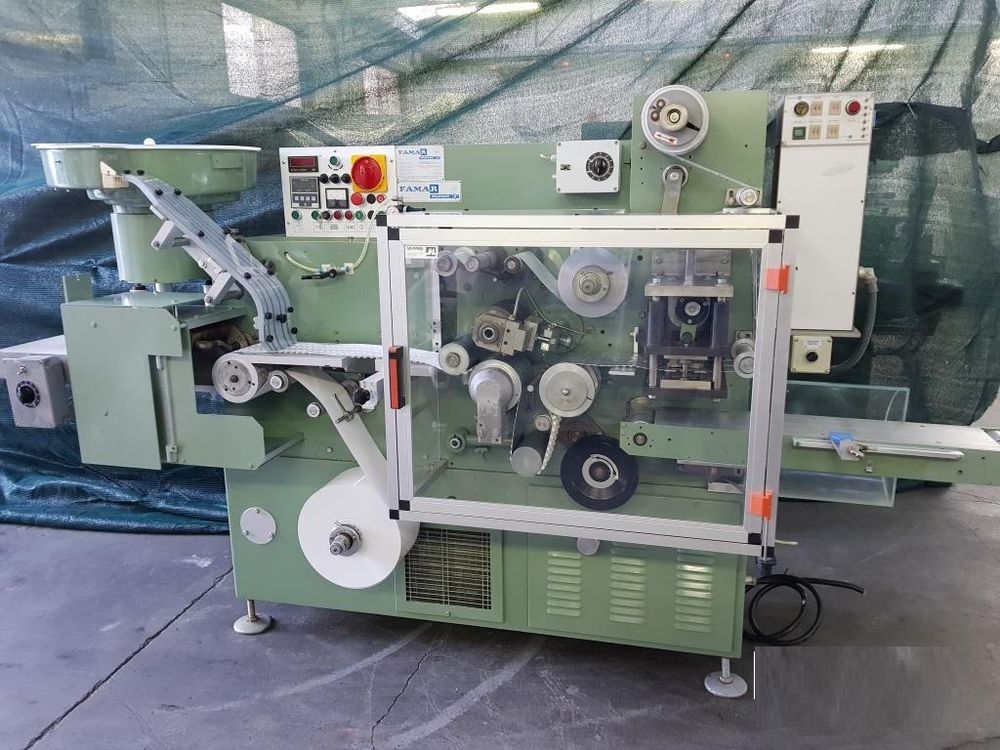

Famar Ap, Automatic Blistering Machine

Main Features
Designed for easy access to all stations, facilitating maintenance and cleaning.
Fully visible movements for enhanced operational oversight.
Equipped with advanced safety devices to protect operators during all phases of work.
Capable of thermoforming materials from a coil to the forming station seamlessly.
Efficient product feeding systems that ensure precise placement into cells.
Versatile packaging options for confetti, tablets, hard and soft gelatin capsules, and more.

Technical Production Features
Max roll width: 230 mm
Max coil diameter for thermoformable material: 400 mm
Max coil diameter for coating material: 200 mm
Max forming depth: 35 mm
Beats per minute (format dependent): max 60
Pitch: 50-180 mm

Technical Specifications
Currently installed format: ALU-PVC with dimensions of the single cavity: length 16 mm, width 7 mm, depth 5 mm.
Blister sheet dimensions: 85 x 58 mm
Installed coil diameter: 140 mm
Absorbed power: 9 Kw
