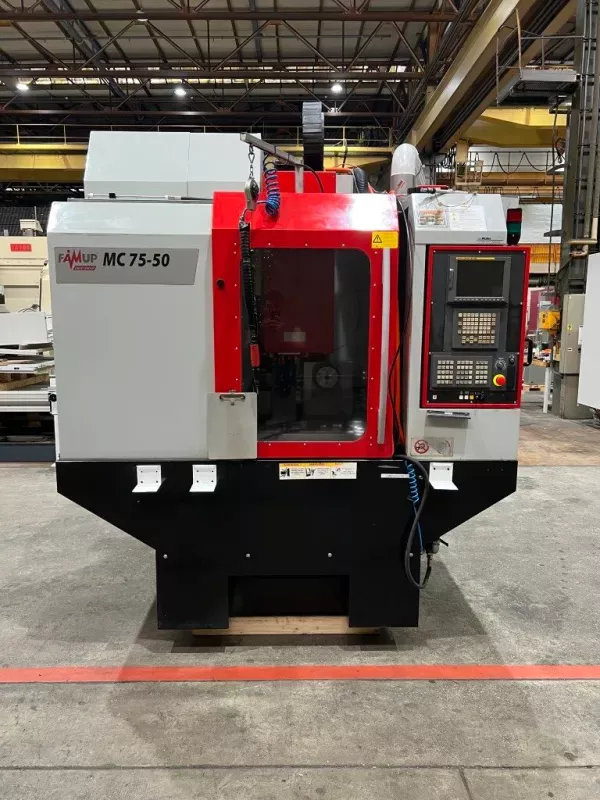

Famup MC75-50 3 Axis

Axis Travel X 750 mm
Axis Travel Y 500 mm
Axis Travel Z 640 mm
Working Feed 20 m/min
Rapid Feed X/Y/Z 40 m/min
Working Feed Force X/Y 6200 N
Working Feed Force Z 6200 N
Positioning Precision X/Y/Z ±5 μm
Repeatability X/Y/Z ±1.5 μm
Average Inversion Error 3 μm
Table Dimensions 900 x 520 mm
Table Grooves 5
Groove Width 18 mm
Groove Distance 100 mm
Max Table Load 400 kg
Spindle Power Max 35 kW
Spindle Power Continuous 22.5 kW
Spindle Speed 12000 rpm
Spindle Torque Continuous 76 Nm
Spindle Measuring System Direct
Tool Magazine Capacity 30
Tool Magazine Type Bidirectional chain
Tool Selection Any
Tool Change Type Direct with interchangeable arm
Max Tool Weight 8 kg
Tool Change Time 1.5 sec
Max Tool Change Time 3.5 sec

Famup MC 75/50 CNC machining center
Lehmann dividing apparatus (3+2)
Fire extinguishing system
Renishaw measuring system + probe
Hydraulic unit
Chip tray
High-pressure pump
Belt filter system
Tool holder set 30 pieces
Complete operational documentation
