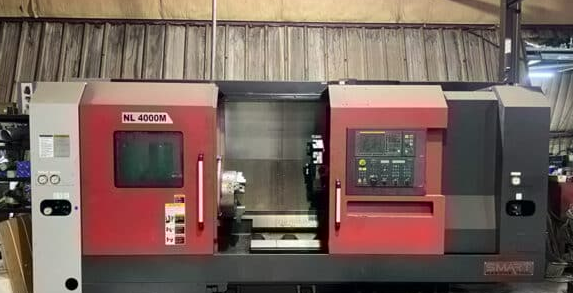

Fanuc 0i-TF CNC Control 10.4” LCD Color Monitor 2,000 rpm Smart Machine Tool NL4000M 2 Axis

Swing over bed 31.10”
Maximum turning diameter 25.11”
Maximum turning length 45.08”
Spindle nose A2-11
Main spindle motor 40 / 60 hp
Spindle speed 2,000 rpm
Draw tube ID 4.59”
Rapid traverse X axis 630 ipm
Rapid traverse Z axis 787 ipm
Guide ways Box Way
Bed structure 45 Deg Slant bed
Number of turret tool stations 12 tools (BMT75)
Turret indexing speed 0.25 seconds per station
Rotating spindle motor 10 / 14.8 / 20.1 hp
Rotating tool RPM 4,000
Tailstock center taper MT #5
Tailstock quill travel 4.72”
Floor space L x W 221.1” x 79.4”
Fanuc 0i-TF CNC Control 10.4” LCD Color Monitor
Chip Conveyor – Side Discharge
140 PSI Coolant Pump
