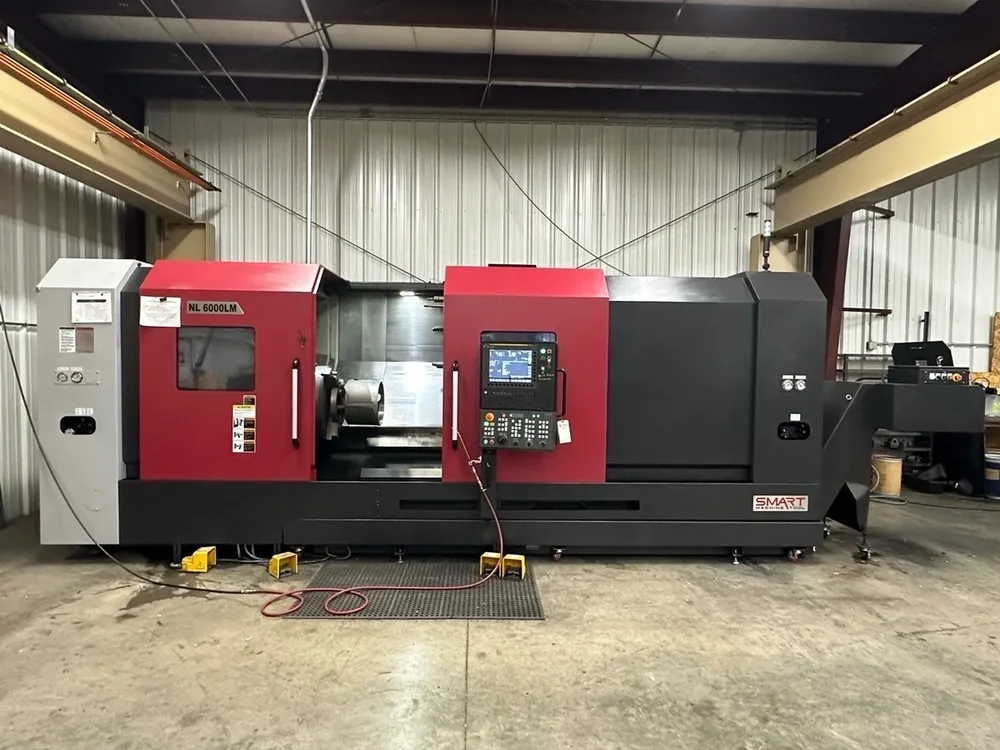

Fanuc 0i-TF Plus CNC Control 1200 rpm SMART NL6000LM 2 Axis

X-Axis Travel: 18.7"
Z-Axis Travel: 86.6"
C-Axis: 0.001°
Rapid Traverse X-Axis: 630 in/min
Rapid Traverse Z-Axis: 394 in/min
Control: Fanuc 0i-TF Plus CNC Control
Ethernet Port
Box Ways
Live Tooling
Programmable Tailstock
Programmable Hydraulic Steady Rest: 3.3" - 13.7"
Tool Presetter
140 PSI Coolant
Swing Over Bed: 40.55"
Turning Diameter: 35.43"
Machining Length: 86.61"
Spindle Bore: 7.125"
Bar Capacity: 6.5"
Spindle Speed: 1200 rpm
Spindle Motor Power: 73 hp
Spindle Nose: A1-15
Spindle Torque: 3792
Gear Ranges: 2
Live Tool Spindle Speed: 3000 rpm
Live Tool Motor Power: 20 hp
24" 3 Jaw Hydraulic Chuck
Turret Configuration: 1285
Tailstock Quill Diameter: 7.09"
Tailstock Taper: MT6
Tailstock Quill Travel: 5.91"
Tailstock Travel: 86"
3 Axis
Chip Conveyor
All Available Manuals
Machine Weight: 44754 lbs
