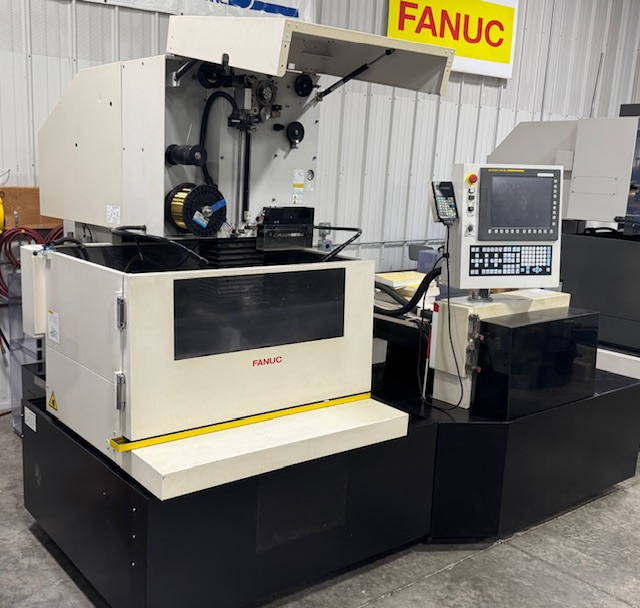

Fanuc 1iE-SAWF CNC Wire EDM

Fanuc 1iE-SAWF CNC Wire EDM


Maximum Workpiece Dimensions: 43” x 32” x 12”
Maximum Workpiece Weight: 3,350 lbs.
Machine Range: 23.6” x 15.7” x 12.2”
U/V Travel: +/- 3.93”
Resolution: .0000004”
Wire Diameter: .004” - .012” (.010” Guides)
Max. Workpiece AWF Height: 12.0”
Wire Spool Capacity: 35 lb.
Factory Rated Cutting Speed: 31 sq/in/hr.
Floor Space Required: 115” x 131” x 85”
Machine Weight: 7,000 lbs
Input Power (Total): 200-220, 3 Phase, 13KVA
