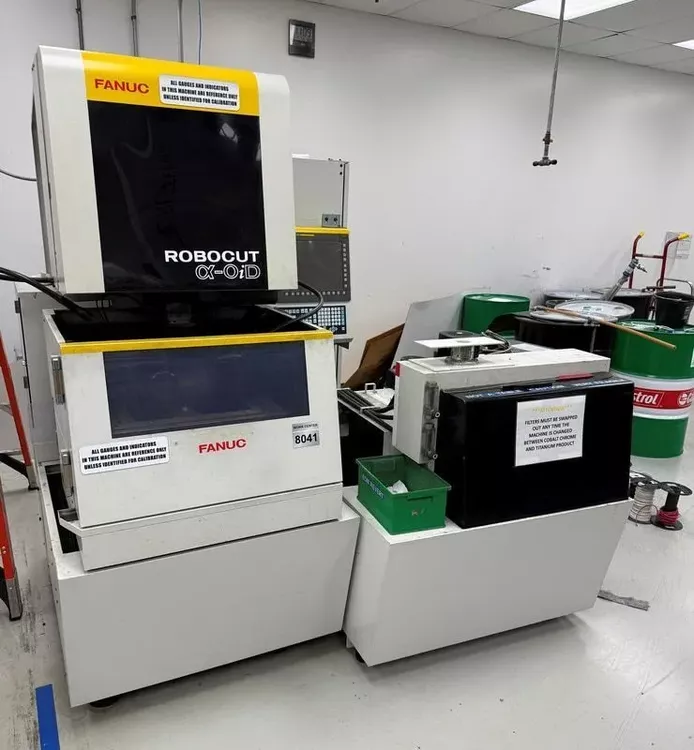

Fanuc ALPHA-0iD

X-axis travel: 14.6"
Y-axis travel: 10.6"
Z-axis travel: 10.2"
U/V-axis travel: 2.36" x 2.36"
Max workpiece size: 27.6" x 23.6" x 9.8"
Max workpiece weight: 1100 lbs
Tank dimensions: 30.5" x 23.6"
Max cutting speed: 31 in²/hour
Table feedrate: 1–50 in/min
Wire diameter: Ø 0.004"–0.012"
Max wire spool weight: 35 lbs
Wire feedrate: 0–590 in/min
Wire tension: 200–2500 grams
Positioning accuracy: ±0.0001"
Auto wire feed: Standard
Dielectric tank capacity: 145 gallons
Max submerged depth: 9.84"
Electrics: 200/220V / 3Ph / 50/60Hz
Machine weight: 4,000 lbs
Machine dimensions: 76" x 87" x 77"H

Fanuc Series 310is-WA CNC touchscreen control
Dielectric filtration system
Inverter chiller
Wire reclaim bin
Control cabinet
Linear glass scales (X & Y)
AI pulse control
AI wire break repair function
Servo water level control
Twin AC servo wire tension control
Air jet AWF
