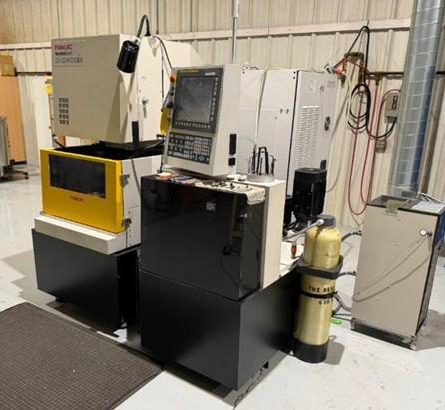

Fanuc C400iA CNC Wire EDM

Fanuc 31i-WB CNC control system
X/Y/Z machine range: 14.6" x 10.6" x 10.2"
U/V axis travel: ±2.36"
Taper angle: ±12° @ 10"
Internal worktank size: 30.5" x 23.6" x 9.8"
Max workpiece weight: 1100 lbs
Submerged cutting depth: 9.84"
Wire diameter range: 0.004" – 0.012"
Equipped wire guide size: 0.010"
Dielectric fluid capacity: 145 gallons
Maximum wire spool weight: 35 lbs
Automatic wire threader
Submerged cutting capability
Fluid chiller
Programmable flushing system
Advanced pendant control
Wire alignment gauge
15" color LCD touchscreen
Heidenhain X-Y glass scales
(2) LED work lights
Ethernet interface
(2) USB ports
Internal worktank machining system
Machine dimensions (L x W x H): 92" x 105" x 77"
Machine weight: 4000 lbs
Input power: 200 – 220 V, 3 phase, 13 kVA
