Fanuc LR MATE 200iD/7L 6 Axis 7kg

Ref : 2498793-3-AW
Condition : Used
Manufacturer : Fanuc
Model : LR MATE 200iD/7L
Nb Of Axis : 6 Axis
Capacity : 7kg
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

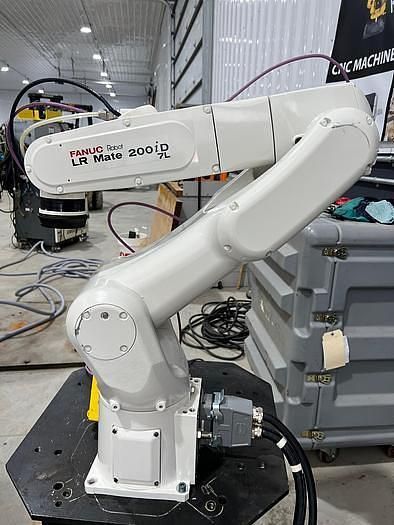

FANUC LR MATE 200iD/7L WITH R30iB MATE PLUS COMPACT CONTROLLER, CABLES, AND TEACH PENDANT.


Robot Specifications
Axes: 6
Payload: 7kg
H-Reach: 911mm
Repeatability: ±0.03mm
Robot Mass: 27kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed
J1 370 °/s (6.46 rad/s)
J2 310 °/s (5.41 rad/s)
J3 410 °/s (7.16 rad/s)
J4 550 °/s (9.6 rad/s)
J5 545 °/s (9.51 rad/s)
J6 1000 °/s (17.45 rad/s)

Robot Motion Range
J1 +340° - 360°
J2 ±245°
J3 ±420°
J4 ±380°
J5 ±250°
J6 ±720°

EQUIPPED WITH:
FANUC LR MATE R30iB COMPACT CONTROLLER
FANUC ROBOT CONNECTION CABLES
FANUC COLOR I-PENDANT
