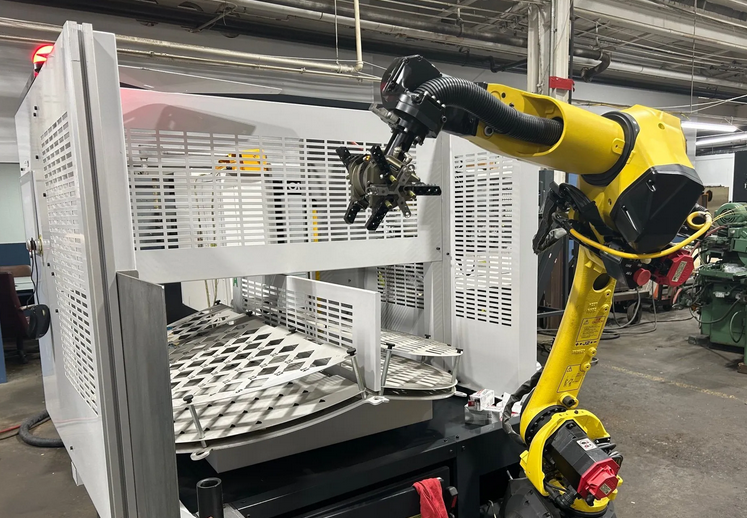

Fanuc M-10iD/12 6 Axis 12 kg

FANUC M-10iD/12
2018

Controlled axes: 6
Payload: 12 kg
Reach: 1441 mm
Repeatability: ±0.02 mm
Mechanical weight: 145 kg
Motion range J1: 340°
Motion range J2: 235°
Motion range J3: 455°
Motion range J4: 380°
Motion range J5: 360°
Motion range J6: 900°
Max speed J1: 260°/sec
Max speed J2: 240°/sec
Max speed J3: 260°/sec
Max speed J4: 430°/sec
Max speed J5: 450°/sec
Max speed J6: 720°/sec
J4 moment/inertia: 26 / 0.9
J5 moment/inertia: 26 / 0.9
J6 moment/inertia: 11 / 0.3
Average power consumption: 1 kW
Body protection: IP54 (standard), IP65 (optional)
Wrist & J3 arm protection: IP67

Fanuc System R-30iB Plus Controller
Grippers
Load & Go Magazine
Teach Pendant
Siemens HMI
