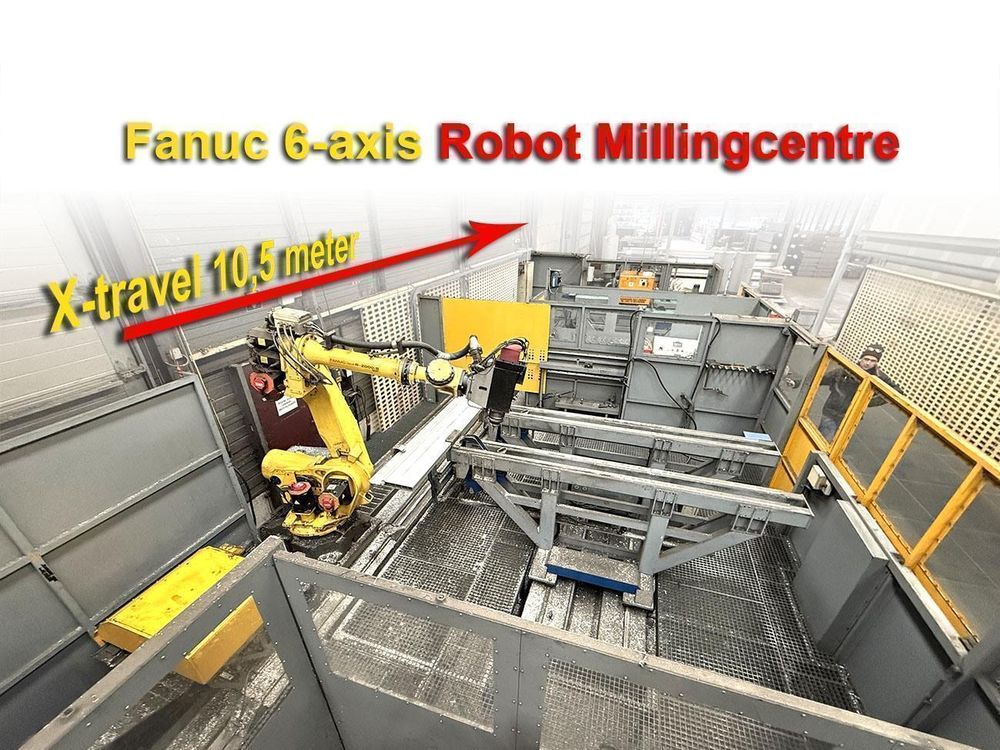

Fanuc MILLING ROBOT X: 10 500 / Y: 3045 / Z: 3500 mm CNC 6 Axis

X-axis travel 10500 mm
Y-axis reach 3045 mm
Z-axis height 3500 mm
6-axis robotic milling center
Fanuc R-2000-B/165F robot
R-30iA controller
Maximum profile workpiece length 15000 mm
Maximum workpiece size without extended arm reach 10500 x 3045 mm
Maximum workpiece height 3500 mm
Maximum robot payload 165 kg
Robot weight 1200 kg
Milling head TMA6 17/2
Spindle speed 1–12000 rpm
ISO 40 spindle taper
11 kW spindle power
Milling head weight 45 kg
Toolchanger on track
13 tool positions
12 live tools
1 measuring probe
Automatic tool change
Integrated thermal protection probe
Pneumatic tool clamping system
Front bearing pressurization
Forced air ventilation
Taper cleaning system
2 inductive sensors
Spindle status signal
Optical spindle speed sensor
Grease bearing lubrication
High-precision dynamically balanced electric spindle
Configurable multiple work areas
