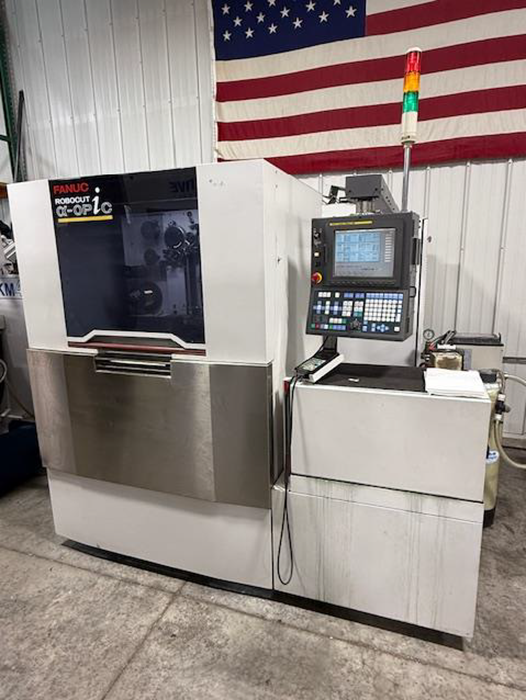

Fanuc ROBOCUT 0PiC/AWF

X Travel: 12.6 in
Y Travel: 8.6 in
Z Travel: 7.0 in
U/V Travel: ±2.364 in
Taper Angle: 30° @ 3.26 in
Control: Fanuc 18W (64 bit) – 5 Axis
Max Workpiece Dimensions: 6.0 in x 17.0 in x 7.0 in
Max Workpiece Weight: 1100 lbs
Table Dimensions: 21.0 in x 14.0 in (3 Side)
Wire Diameter: 0.002 in – 0.012 in
Max Workpiece AWF Height: 7.0 in
Factory Rated Cutting Speed: 28 sq/in/hr
Machine Dimensions: 92 in x 86 in
Machine Weight: 4000 lbs
Input Power: 208/3/60 – 13 KVA

Submerged Cutting
Automatic Wire Threader
Water Chiller
Non-Electrolysis Power Supply (AC)
Ultra-High Resolution Glass Scale Feedback 0.05 µm
Ultra-High Resolution Servo Motors
Ultra-High Precision Large Dia 32 mm Ball Screws
Auto Ball Screw Greasing
Hardened Stainless Table
Inverter Chiller
22 lb Wire Spool
