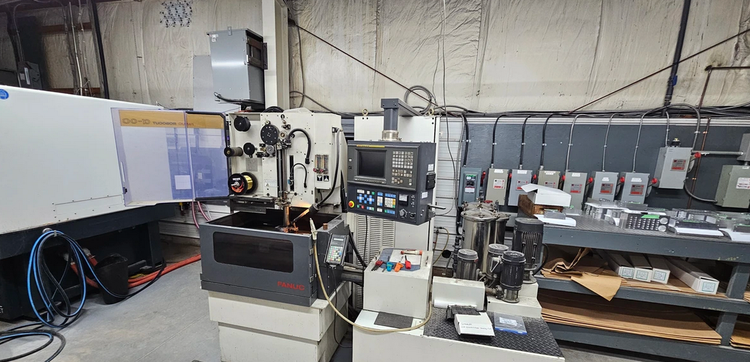

Fanuc ROBOCUT A-0C

X Axis Travel: 12″
Y Axis Travel: 8″
Z Axis Travel: 7″
U Axis Travel: ±60 mm
V Axis Travel: ±60 mm
FANUC Series 16-W CNC Control
Automatic Wire Threading
Submerged Cutting
Coolant System
Maximum Workpiece Length: 650 mm
Maximum Workpiece Width: 420 mm
Maximum Workpiece Height: 170 mm
Maximum Workpiece Weight: 165 kg
Maximum Workpiece Weight: 250 kg
Maximum Workpiece Thickness: 300 mm
Wire Diameter: 0.10 mm
Wire Diameter: 0.30 mm
Maximum Taper Angle: ±30°
Minimum Positioning Increment: 0.00001 mm
Rapid Traverse X: 900 mm/min
Rapid Traverse Y: 900 mm/min
Rapid Traverse U: 450 mm/min
Rapid Traverse V: 450 mm/min
Rapid Traverse Z: 450 mm/min
Cutting Feedrate: 0.0001 mm/min
Cutting Feedrate: 50 mm/min
Wire Speed: 10 m/min
Wire Speed: 15 m/min
Wire Tension: 80 g
Wire Tension: 2500 g
Dielectric Fluid: Deionized Water
Tank Capacity: 260 L
Tank Capacity: 390 L
Filtration Flow Rate: 40 L/min
Power Requirement: 208 V
Power Requirement: 415 V
Power Consumption: 11 kVA
Power Consumption: 13 kVA
Machine Weight: 1500 kg
Machine Weight: 1900 kg
