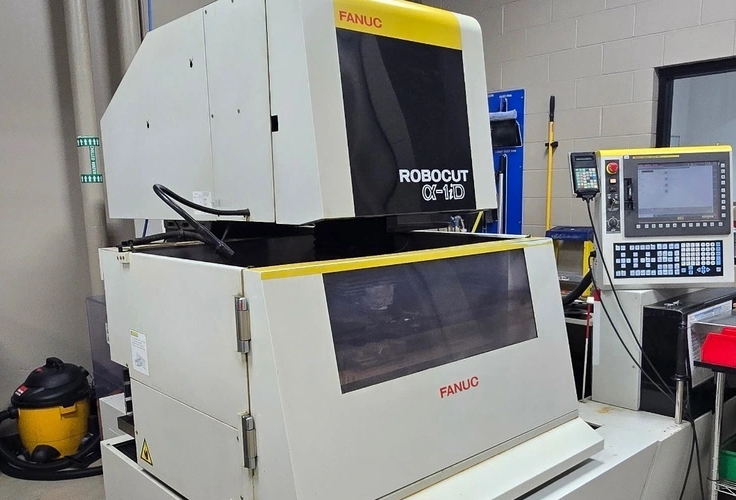

Fanuc Robocut Alpha 1iD

X-Axis Travel 23.6 in
Y-Axis Travel 15.7 in
Z-Axis Travel 16.2 in
U/V-Axis Travel 3.937 in
Number of Axes 5
Control Fanuc 310iS-WA, 15" Touchscreen
Table Length 35.43 in
Table Width 23.62 in
Table Load Capacity 3550 lb
Taper Capacity 30 deg
Auto Threading Yes
Wire Diameter Min 0.004 in
Wire Diameter Max 0.012 in
Dielectric Tank Capacity 301 gal
Submerged Yes
Power Requirement 220 va
Dimensions 100 x 120
Weight 6700 lb
Advanced AWF Automatic Wire Threader, 10 Second Threading
Linear Glass Scales
Twin Servo Wire Tension
