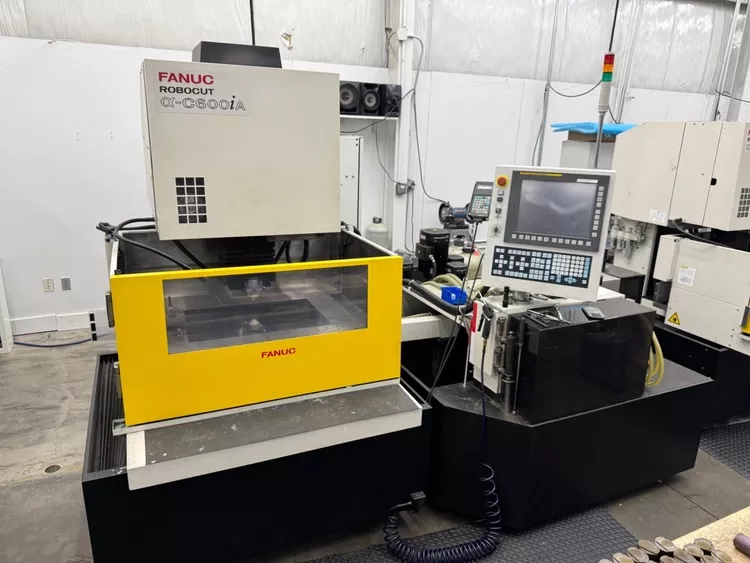

Fanuc ROBOCUT C600IA

FANUC ROBOCUT C600IA
2012

Control Fanuc 31i-WB
Display 15.1" LCD Touch Screen
Number of axes 5
Table length 35.43 in
Table width 23.62 in
Table load capacity 3550 lb
X-axis travel 23.6 in
Y-axis travel 15.7 in
Z-axis travel 12.2 in
U/V-axis travel 3.937 in
Taper capacity 30 degrees
Auto threading Yes
Minimum wire diameter 0.004 in
Maximum wire diameter 0.012 in
Submerged cutting Yes
Dielectric tank capacity 301 gal
Power requirement 220 VA
Eco mode wire-saving feature
Spindle load monitor
Tool offset memory type C
Program storage 640 MB
500 registered programs
High-speed skip function
600 macro common variables
Enhanced SGI
Tool center point control for 5-axis machining
Tilted working plane command
Handle interruption
Program restart
Automatic Z-axis retract and restart
Air/oil mist unit
Air dryer
Chip conveyor
Table washing coolant under pallet
Automatic air blower nozzle
Renishaw probing
High-pressure through-spindle coolant 1000 PSI
Chip blaster
Spindle chiller
