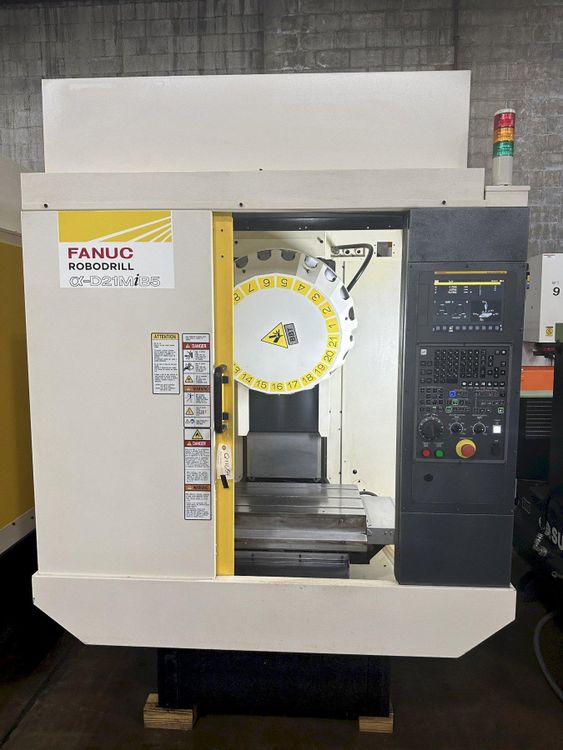

Fanuc Robodrill α-D21MiB5 24000 RPM

FANUC Robodrill α-D21MiB5
Year 2017

CNC control Fanuc Series 31i-B5
Number of axes 3
Table size 25.6" x 15.75"
Table load capacity 661 lbs
X-axis travel 19.7"
Y-axis travel 15.7"
Z-axis travel 12.9"
Max clearance table to spindle nose 22.8"
Min clearance table to spindle nose 9.84"
Feed rate all axes 1181 IPM
Rapid traverse rate all axes 2125 IPM
Max spindle speed 24000 RPM
Spindle taper BT30
Coolant through spindle yes
ATC capacity 21
Tool change time 1.6 seconds
Electrics 220V / 3 Phase / 60 Hz
Approx. machine dimensions 63" x 63"
Approx. machine height 90"
Approx. machine weight 4850 lbs
Fanuc Series 31i-B5 CNC control
Renishaw OMP40-2 part probe
Mist collector
Coolant tank
