Fanuc Robodrill α-D21MiB5 3 Axis

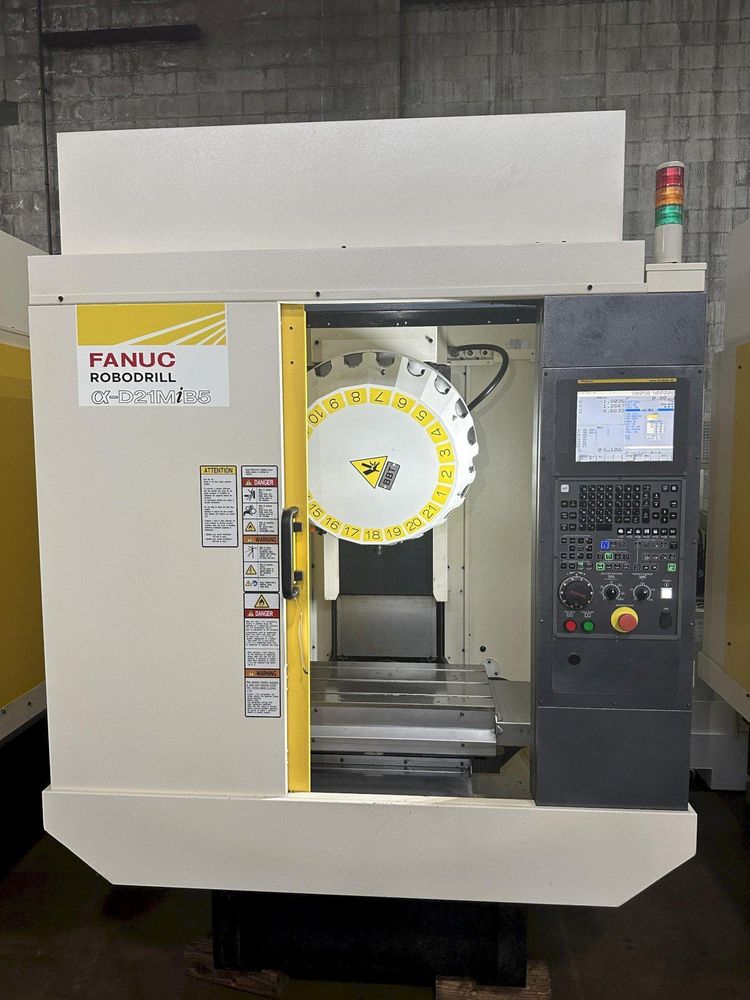

FANUC Robodrill α-D21MiB5
2017

CNC control Fanuc Series 31i-B5
Number of axes 3
Table size 25.6" x 15.75"
Table load capacity 661 lbs
X-axis travel 19.7"
Y-axis travel 15.7"
Z-axis travel 12.9"
Maximum clearance tabletop to spindle nose 22.8"
Minimum clearance tabletop to spindle nose 9.84"
Feed rates all axes 1,181 IPM
Rapid traverse rate all axes 2,125 IPM
Maximum spindle RPM 24,000 RPM
Spindle taper BT30
Coolant through spindle yes
Automatic tool changer capacity 21
Tool change time 1.6 seconds
Electrical requirements 220V / 3-phase / 60 Hz
Machine dimensions 63" x 63"
Machine height 90"
Machine weight 4,850 lbs
Fanuc Series 31i-B5 CNC control
Renishaw OMP40-2 part probe
Mist collector
Coolant tank
