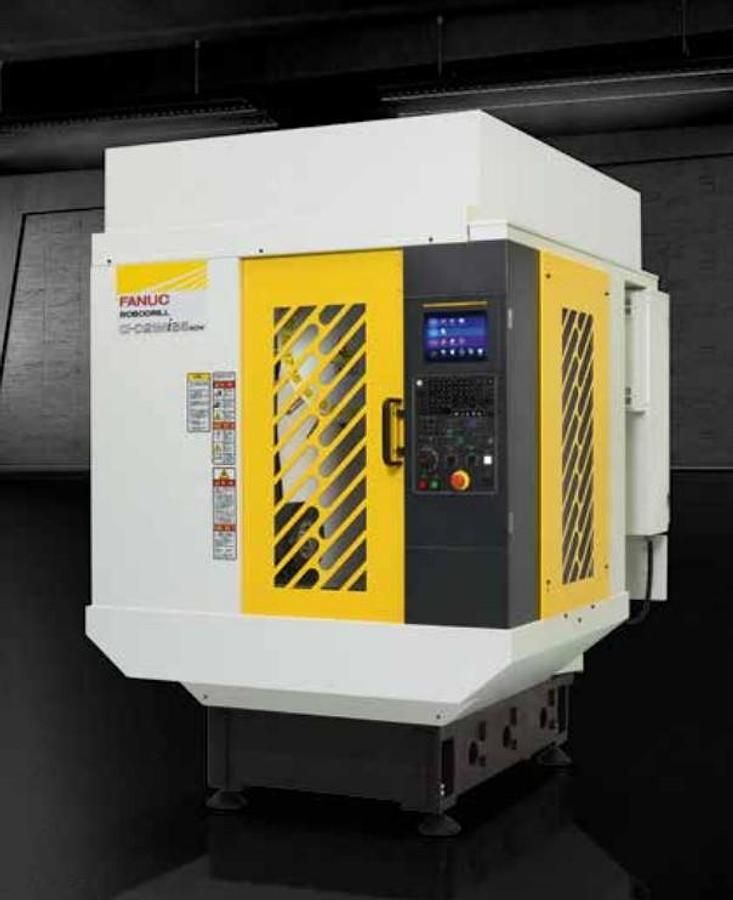

Fanuc ROBODRILL ALPHA D21MiB5-24-ADV 3 Axis

FANUC ROBODRILL ALPHA D21MiB5-24-ADV
2021

Travel X/Y/Z: 500mm x 400mm x 400mm
Max tool length (0–24,000 RPM): 250mm
Max tool diameter: 80mm
Table size: 650mm x 400mm
Max table load: 400kg
Max tool mass: 4kg
Distance from spindle nose to table top: 180mm – 580mm
Controller: FANUC 31i-B5
Spindle torque 10,000 RPM (1 min): 80Nm / 14.2kW
Spindle torque 10,000 RPM (continuous): 13.6Nm / 4kW
Spindle torque 24,000 RPM (1 min): 35Nm / 26kW
Spindle torque 24,000 RPM (continuous): 7.5Nm / 5.5kW
Rapid traverse rates X/Y/Z: 54 m/min
Programmable cutting feed rate: 30,000 mm/min
Acceleration X/Y/Z (G) with 100kg table load, 2kg tool: 1.6 / 1.2 / 1.6
Number of tools: 21
Tool change time cut-to-cut: 1.3 sec
Bidirectional positioning accuracy:
