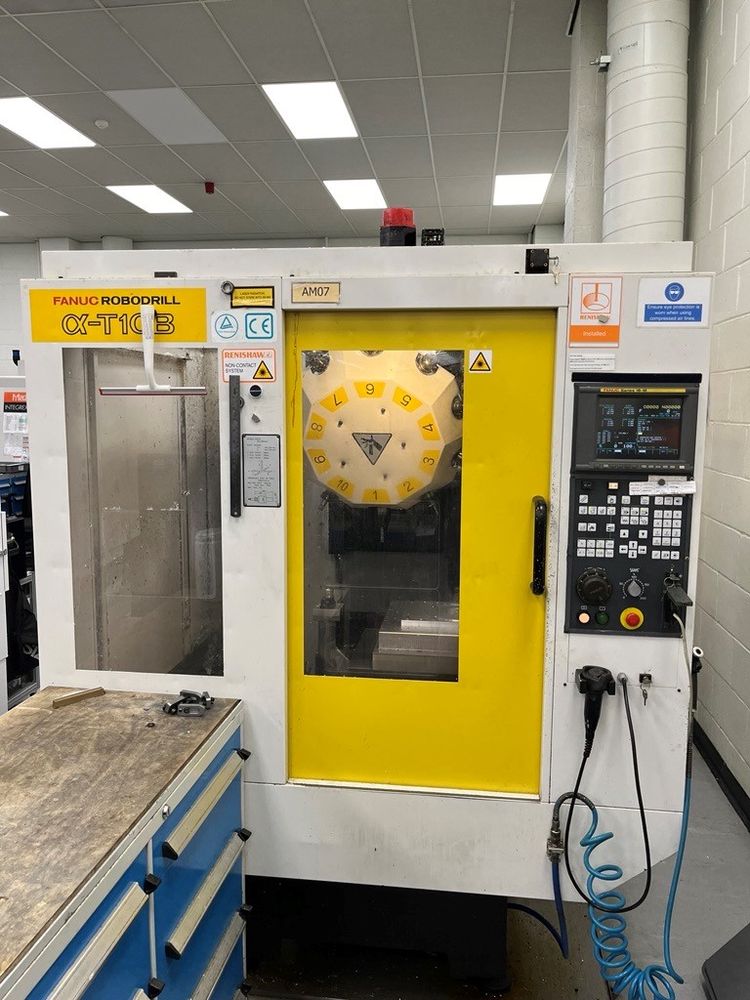

Fanuc Robodrill Alpha T10B 8000 rpm

FANUC Robodrill Alpha T10B
Year 1995

Table size: 500 mm x 380 mm
Maximum loading capacity: 149 kg
X travel: 508 mm
Y travel: 378 mm
Z travel: 300 mm
Rapid traverse X: 36 m/min
Rapid traverse Y: 36 m/min
Rapid traverse Z: 30 m/min
Minimum distance spindle to table: 140 mm
Maximum distance spindle to table: 409 mm
Spindle taper: BT35
Spindle speed: 60 – 8000 rpm
Tool changer capacity: 10 + 1
Tool change time (chip to chip): 1.1 seconds
Spindle drive motor: 5.6 kW
Manual pulse generator
Interlocking guards
Coolant system
Machine length: 1955 mm
Machine width: 2667 mm
Machine height: 2413 mm
Weight: 1700 kg
Control: Fanucse Generator. Interlocking Guards. Coolant
