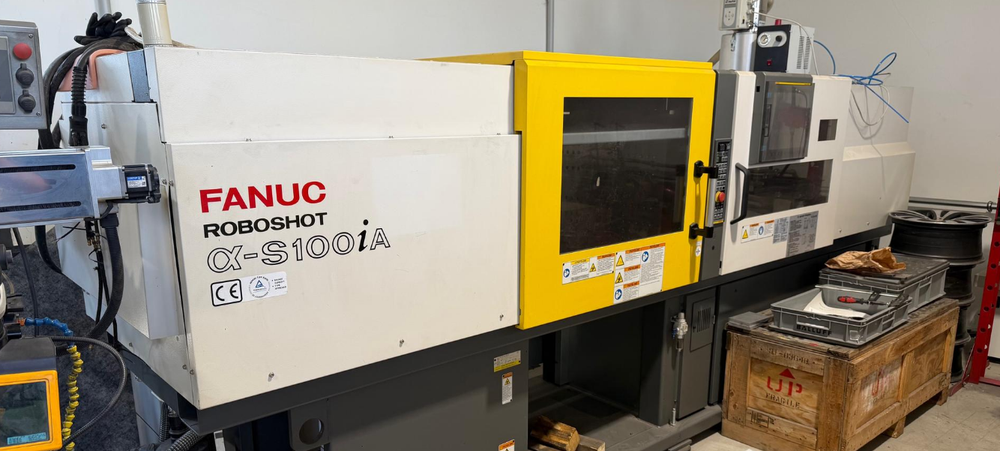

Fanuc ROBOSHOT Alpha S100iA 100 T

Working hours 400
Clamping force: 100 t
Screw diameter: 32 mm
Shot volume: 103 cm3
Type: Horizontal
Drive: Electric


FANUC Roboshot α-S100iA:
Basic Technical Specifications
Mechanism: Double toggle
Clamping force: 1000 kN / 100 tonf (opt. 1250 kN / 125 tonf)
Die height double platen: 150–450 mm (opt. 150–550 mm)
Die height single platen: 220–520 mm (opt. 220–620 mm)
Clamping stroke: 350 mm
Locating ring: Ø 125 mm
Tie bar spacing (H×V): 460 × 410 mm
Platen size (H×V): 660 × 610 mm
Min. mould size (H×V): 265 × 240 mm
Ejector stroke: 100 mm
Max. ejector force: 25 kN / 2.5 tonf (opt. 60 kN / 6.0 tonf)

Clamping force: 1000 kN
Injection speed: 200 mm/s
Max. injection pressure: 2200 bar
Min./Max. mold height: 150 mm / 620 mm (extended)
Clamping stroke: 350 mm
Tie bar spacing: 460 × 410 mm
Ejector stroke: 100 mm
Screw diameter: 32 mm (103 cm3)
Screw/barrel: W/C (hardened, high wear and corrosion resistance, up to 350 °C, 30% GF)
Nozzle: Standard open R19D4

Control & Software (FANUC 31i-B CNC)
15" LCD touchscreen
SI unit (kN, MPa...)
Password-protected screen lock
AI pressure profile trace function
AI metering control function
AI mold protection function
AI ejector protection function
Backflow monitor function
Precise metering 2, 3
Auto purge function
Extruder delay timer function
High precision V-P switch function
Injection unit temperature control and display
Automatic mold height adjustment
2-stage ejection
Ejector delay function
Pre-ejection function
Optimal energy consumption function

Standard Machine Equipment
Extended mold height
4-circuit rotameter
Automatic mold height adjustment
Hopper slider
3-color LED signal lamp
Automatic purge and material cleaning function
Plasticizing speed control
Decompression control additional function
Backflow monitoring function
AI mold and ejector protection
Mold protection output on moving platen
Energy consumption measurement function
Robot interface (Euromap 67)
Auto stop/shutdown mode
3 independent air valves
8 digital outputs, 11 digital inputs
Pre-injection / injection compression function
Cascade injection valve control (up to 8 valves)
USB and memory card output
Tool kit (standard tools + grease gun)
User manual (Hungarian)
Warning labels (Hungarian)
