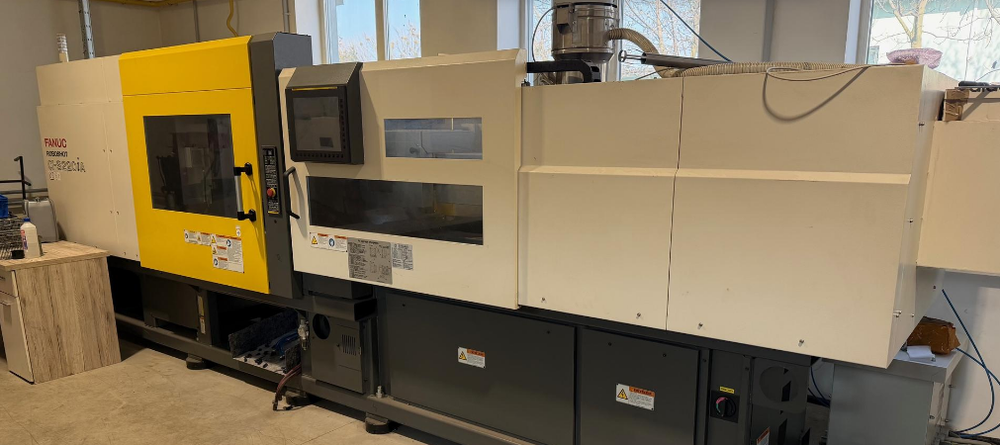

Fanuc ROBOSHOT Alpha S220iA 220 T

FANUC Roboshot α-S220iA – Equipment List
Working hours 399

Basic Technical Specifications
Clamping force: 2200 kN
Injection speed: 200 mm/s
Max. injection pressure: 1900 bar
Min./Max. mold height: 250–750 mm (extended)
Clamping stroke: 550 mm
Tie bar spacing (H×V): 650 × 650 mm
Locating ring: Ø 160 mm
Ejector stroke: 150 mm
Screw diameter: 48 mm (318 cm3)
Screw/barrel: W/C (hardened, high wear & corrosion resistance, up to 350 °C, 30% GF)
Nozzle: Standard open R19D4

Control & Software (FANUC 31i-B CNC)
15" LCD touchscreen
SI unit (kN, MPa...)
Password-protected screen lock
AI pressure profile trace function
AI metering control function
AI mold protection function
AI ejector protection function
Backflow monitor function
Precise metering 2, 3
Auto purge function
Extruder delay timer function
High precision V-P switch function
Injection unit temperature control and display
Automatic mold height adjustment
2-stage ejection
Ejector delay function
Pre-ejection function
Optimal energy consumption function

Standard Machine Equipment
Extended mold height
4-circuit rotameter
Automatic mold height adjustment
Hopper slider
3-color LED signal lamp
Automatic purge and material cleaning function
Plasticizing speed control
Decompression control additional function
Backflow monitoring function
AI mold and ejector protection
Mold protection output on moving platen
Energy consumption measurement function
Robot interface (Euromap 67)
Auto stop/shutdown mode
3 independent air valves
8 digital outputs, 11 digital inputs
Pre-injection / injection compression function
Cascade injection valve control (up to 8 valves)
USB and memory card output
Tool kit (standard tools + grease gun)
User manual (Hungarian)
Warning labels (Hungarian)

Clamping Unit Specifications
Mechanism: Double toggle
Clamping force: 2200 kN / 220 tonf
Die height (single platen): 250–650 mm (opt. 250–750 mm)
Clamping stroke: 550 mm
Locating ring: Ø 160 mm
Tie bar spacing (H×V): 650 × 650 mm
Platen size (H×V): 900 × 900 mm
Min. mould size (H×V): 375 × 375 mm
Ejector stroke: 150 mm
Max. ejector force: 35 kN / 3.5 tonf
