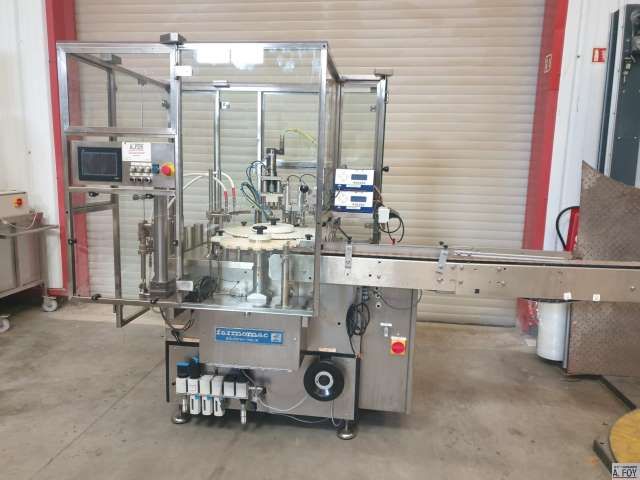

Farmomac, Ima F 67

Filler / rotary filling/capping machine for vials
Weight : 1200 kg
Dimensions : (L x W x H) 2.80 x 1.50 x 1.90 M

Equipped :
- Bottle entry conveyor, with plastic pallets width 82 mm - length 1800 mm
- Entrance star with 20 cells for transferring bottles two by two or with a star with 10 cells for transferring bottles one by one
- Transfer star with 60 cells from bottles two by two to packaging stations or transfer star with 30 cells one by one to packaging stations
- Product filling station with 2 stainless steel nozzles (possibility of putting up to 8 nozzles)
- Product dosing station using 4 volumetric dosers
- 2 corking stations with positive grip by suction with feed via 2 stainless steel vibrating bowls diameter 450 mm
- Cap presence control station
- Control panel with Omron touch screen
- Omron automaton
- General training by motor-variator
- Protective guards with security
- Stainless steel frame

Current equipment :
- Round bottle with diameter : 16 - 23 - 29 - 32 - 35 - 49 and 52 mm
- Rubber stopper diameter : 12 and 18.50 mm
- 2 stainless steel filling nozzles diameter : 2 mm
- 4 Pumps of 20ml each

Capacity :
- Bottle dimensions :
* Minimum diameter 9 mm - maximum 50 mm
* Minimum height 25 mm - maximum 100 mm
- Capacity from 0.5 to 60 ml

Maximum hourly production :
Approximately 6000 to 12000 bottles depending on the size of the bottles and the nature of the product

Motor power : 3.5 kW
Compressed air pressure : 4 bar
Overall dimensions of vibrating bowls :
Diameter 0.45 m - height 1.05 m - weight 150 kg (unit)
