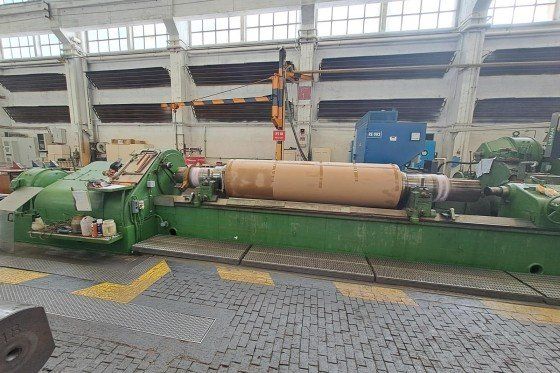

Farrel 36" x 60' LISMAR

Control: Lismar
crowning and concaving grinding: Yes
roll grinder with Lismar Datames Combi Tester: Yes
detect surface defects (cracks, bruises): Yes
detect subsurface defects (cracks, debonding, inclusions): Yes
real-time defect display: Yes
usable for cast and forged rolls: Yes

maximum full-size wheel diameter: 940 mm
work swing over bed: 965 mm
workpiece load capacity: 40500 kg
grinding length: 6090 mm
centre height: 528 mm

grinding diameter: 1056 mm
grinding stone dimensions: 1080 x 180 mm
grinding stone speed: 400 - 1000 RPM

Dimensions (Estimate)
machine length: 10560 mm
machine width: 3600 mm
machine height: 3200 mm
machine weight: 55000 kg

Equipped with
stones / flanches / lubrication / coolant system
