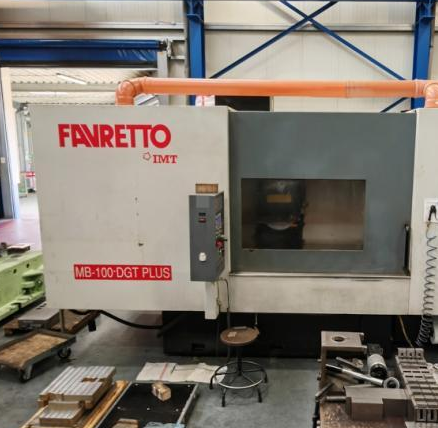

Favretto MB 100 DGT-PLUS

Maximum grinding length: 1200 mm
Maximum grinding length with dresser: 1000 mm
Maximum grinding width: 600 mm
Grinding height (table to wheel underside): 550 mm
Table load with magnetic chuck: 975 kg
Table load without magnetic chuck: 1200 kg
Table speed: 1–40 m/min

Z-axis rapid traverse: 5 m/min
Z-axis adjustable feed: 1–50 mm
Z-axis infinitely variable feed: 0–2000 mm/min
Minimum Z-axis increment: 0.001 mm

Y-axis rapid traverse: 1.5 m/min
Minimum Y-axis increment: 0.001 mm

Grinding spindle motor power: 11 kW
Grinding wheel size: 406 × 152.4 × 100 mm
Grinding wheel speed: 1400 rpm

Siemens control
Electronic handwheel
Electro-permanent magnetic chuck 1000 × 500 mm
Electronic control module with potentiometer
Coolant filtration system with paper filter
Magnetic separator
Coolant tank capacity: 350 l
Coolant flow rate: 100 l/min
Static frequency converter
Automatic dressing compensation
Complete extraction system
Accessories
2 wheel flanges
5 grinding wheels

Machine dimensions: 4450 × 2935 × 2540 mm
Machine weight: 6700 kg
