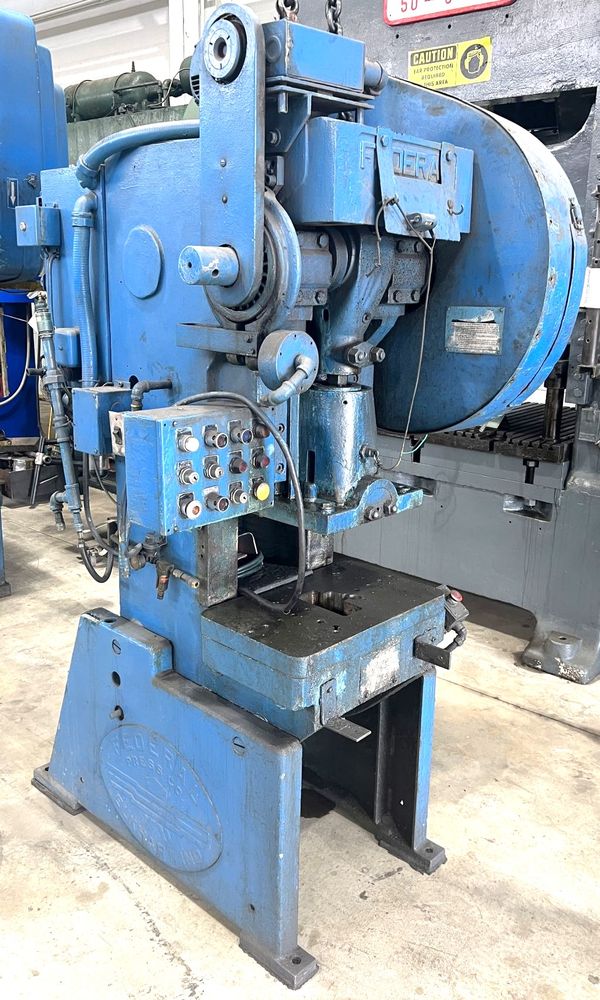

Federal 32 32 tons

Federal 32
Year: 1977

Capacity: 32 tons
Stroke: 3″
Shut Height to Bed: 9.5″ SDAU
Slide Adjustment: 2″ manual
Bed Area: 24″ right to left x 15″ front to back
Slide Area: 15″ right to left x 12″ front to back
Bolster Plate: approx. 2″ high x 24″ right to left x 15″ front to back
Distance Between Uprights: 10.25″
Speed: 125 strokes per minute
Clutch: Air clutch & brake
Motor: Approx. 3 HP, 1150 RPM
Controls: Existing Federal relay press control
Construction: Floor standing, steel frame
Approx. Dimensions: 96″ high x 54″ right to left x 60″ front to back
Approx. Weight: 6,500 lbs
Condition: Very good
