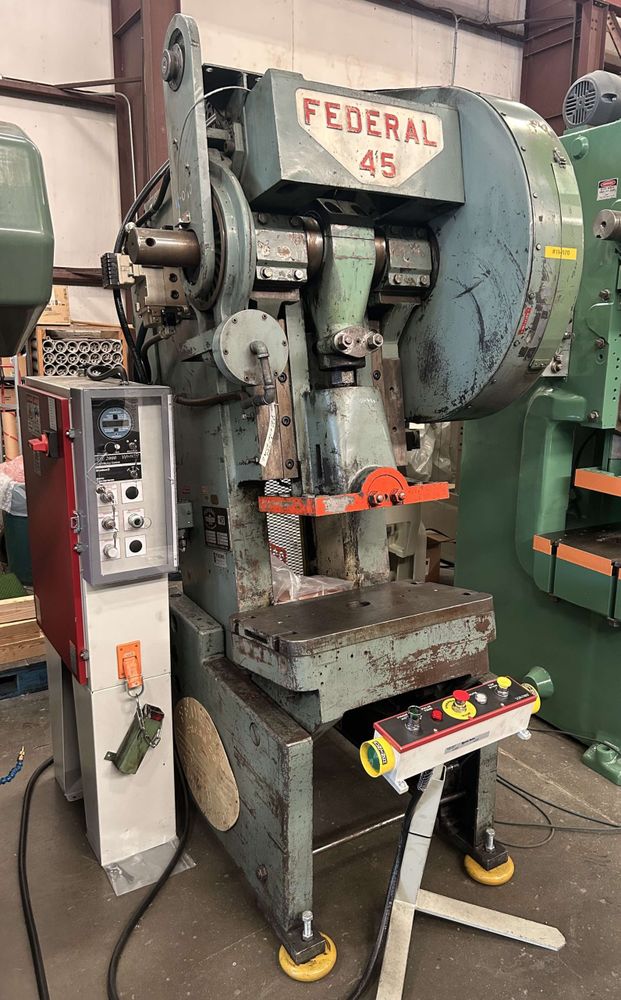

FEDERAL 45
1973

Capacity: 45 ton
Stroke: 3″
Die height: 11″ SDAU over 1.5″ bolster
Bed area: 28″ x 18″ (R-L x F-B)
Speed: 120 SPM
Slide adjustment: 2.5″ manual
Slide area: 18″ x 14″ (R-L x F-B)
Bolster plate: 1.5″ H x 28″ R-L x 18″ F-B
Distance between uprights: 13″
Distance floor to bed: 30.5″
Clutch: Federal air clutch & brake
Motor: 3 HP 1150 RPM, 208-240/480V, 3-phase, 60 Hz
Control: Wintriss WPC 2000 clutch/brake controller
Approx. dimensions: 94″ H x 54″ R-L x 66″ F-B
Approx. weight: 7,000 lbs

Lincoln Centro-Matic grease lube pump
Cast iron frame
Floor standing
Incline adjustable
New Wintriss WPC 2000 clutch/brake controller (installed 2022)
