Feeler HV-800 3 Axis

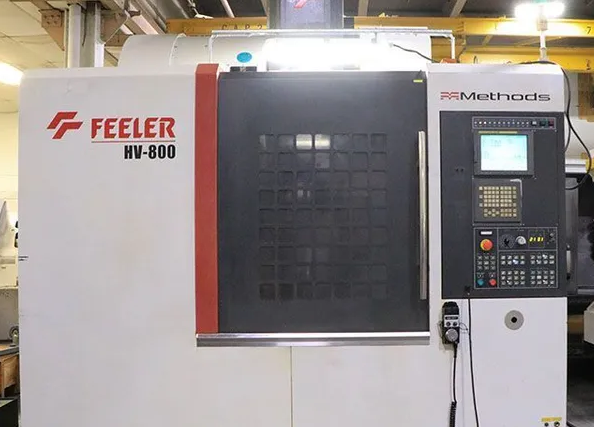

FEELER HV-800
2011

X-axis travel: 31.5" (800 mm)
Y-axis travel: 20.5" (520 mm)
Z-axis travel: 19.9" (505 mm)
Table size: 37.4" x 20.5" (950 x 520 mm)
Maximum table load: 1100 lbs (500 kg)
Spindle nose to table top: 5.1"–25"
Spindle motor: 30 hp
Maximum spindle speed: 15,000 rpm
Spindle taper: 40
Automatic tool changer: 30 tools
Rapid traverse X/Y: 2362 ipm
Rapid traverse Z: 1181 ipm
Machine weight: 15,100 lbs
Floor space: 152" x 86" x 112"

Fanuc 18-MB CNC control
Fanuc motors and drives
Rigid tapping
30-station side-mounted dual swing arm ATC
Coolant through spindle
High pressure pump
Coolant system
Spindle oil chiller
Dual chip augers
Chip conveyor
Steel telescopic way covers
