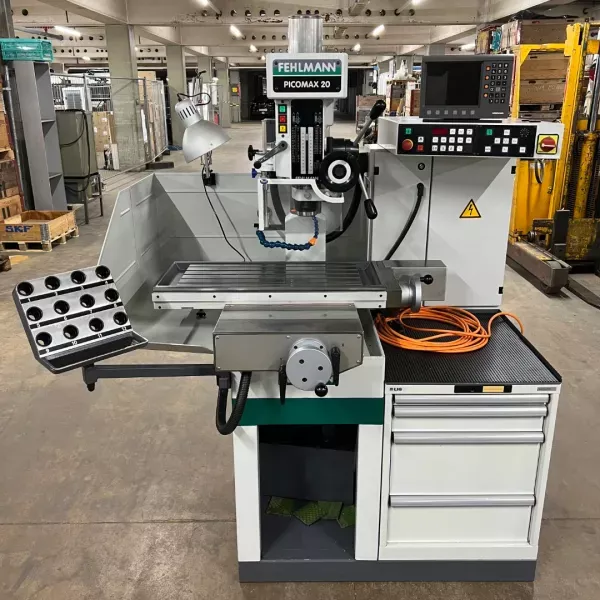

Fehlmann PICOMAX 20 Vertical 6300 rpm

Machine head adjustment W: 450 mm
Spindle movement Z: 110 mm
Drive power: 2.9 kW
Max. torque: 40 Nm
Speed range, continuously adjustable: 50–6300 rpm
Tool change system: SF 32
Repeatability of tool changes: 0.002 mm
Change time (manual): approx. 3 seconds
Feed rate X/Y axis: 1–2000 mm/min
Milling performance (steel 700 N/mm2): 25 cm³/min
Max. drilling capacity: Ø 20 mm
Thread cutting: M16
Machine weight: approx. 850 kg
Total connected load: 4 kW
Operating voltage: 3 x 400V 50Hz
Mains fuse, slow-blow: 16 A
Direct measuring system via linear scale: X/Y
Indirect measuring system via rotary encoder: Z
Smallest display unit: 0.001 mm
Position tolerance: 0.010 mm
Table selection: KS 323
Longitudinal movement X: 450 mm
Transverse movement Y: 260 mm
Clamping surface: 770 x 320 mm
Distance table spindle nose A: 77–527 mm
Height from ground: 1088 mm
Table height: 194 mm
Max. table load: 200 kg
T-slot width: 12 H8
T-slot distance/number: 50/5

Tool holder set
Collet set
Centering microscope
Precision vice
Dividing apparatus
Fehlmann SV100 swivel device
