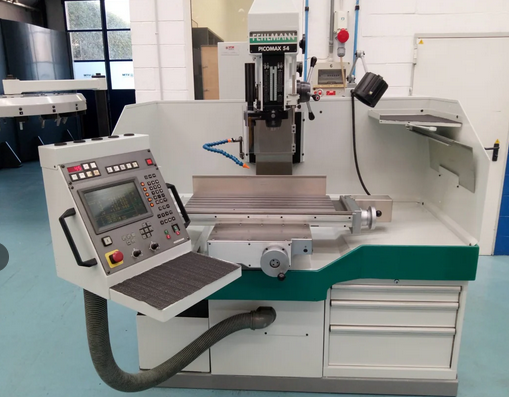

Fehlmann PICOMAX 54 7100 rpm

Travel X-axis 500 mm
Travel Y-axis 260 mm
Travel Z-axis 480 mm
W-axis feed 500–2000 mm/min
Drill capacity in steel 28 mm
Thread cutting in steel M24
Milling capacity 100 cm³/min
Spindle stroke 160 mm
Spindle speed range 50–7100 rpm
Table length 880 mm
Table width 320 mm
Min distance table to spindle 0 mm
Max distance table to spindle 610 mm
Table load max 300 kg
Voltage 400 V
Spindle power 8 kW
Total power required 10 kW
Machine weight approx. 895 kg
Machine length 2200 mm
Machine width 1800 mm
Machine height 2400 mm

Set of drill chucks
Tool storage
Lamp
Set of toolholders
