Fehlmann PICOMAX 56 TOP
Ref :
2739195-3-MT
Condition :
Used
Manufacturer :
Fehlmann
Model :
PICOMAX 56 TOP
Spindle Speed :
-
Year(s) :
2013
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)

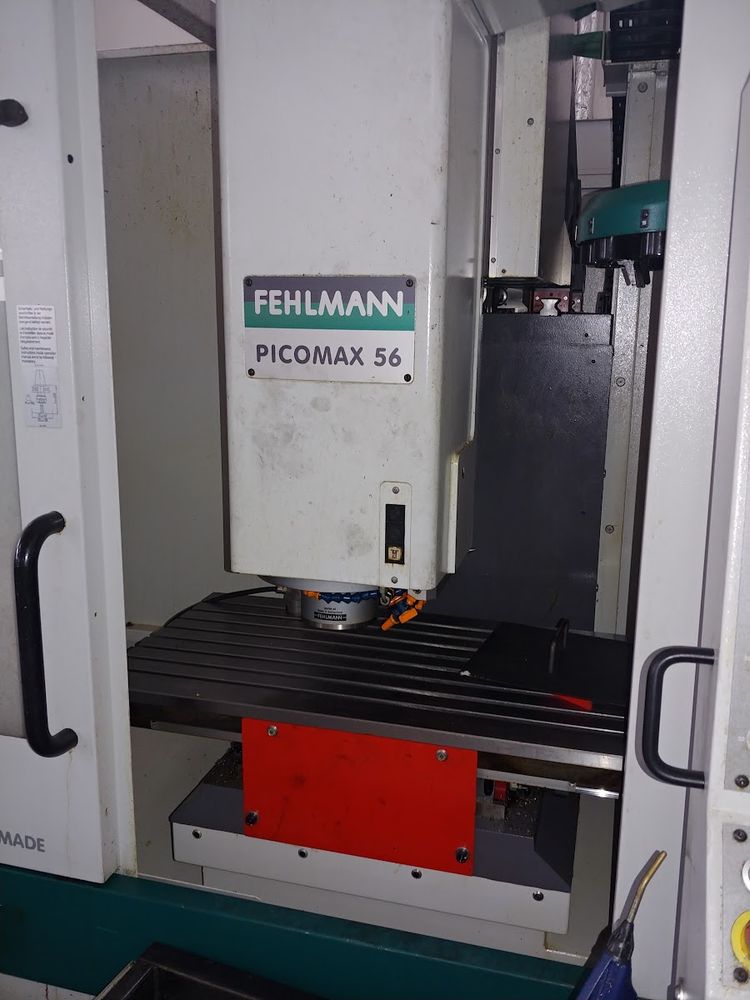

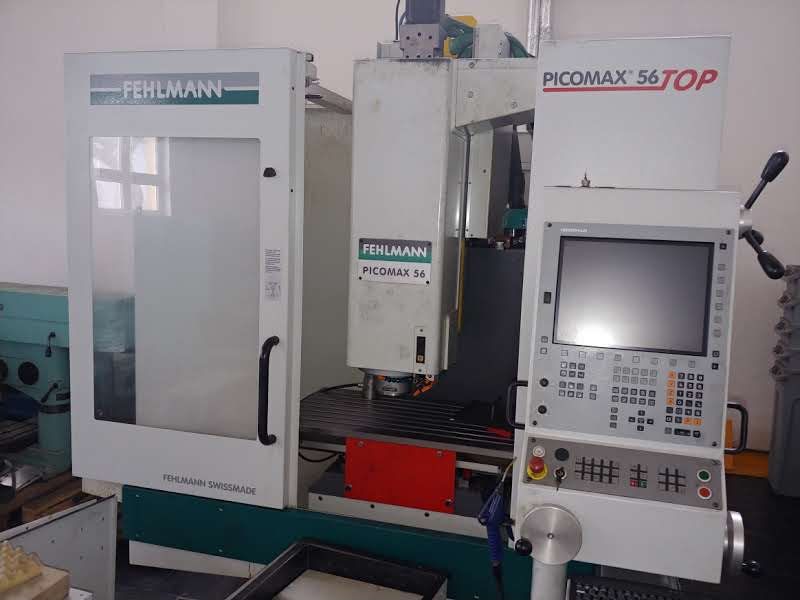

Fehlmann PICOMAX 56 TOP
The machine is in a good technical condition. Not under power.

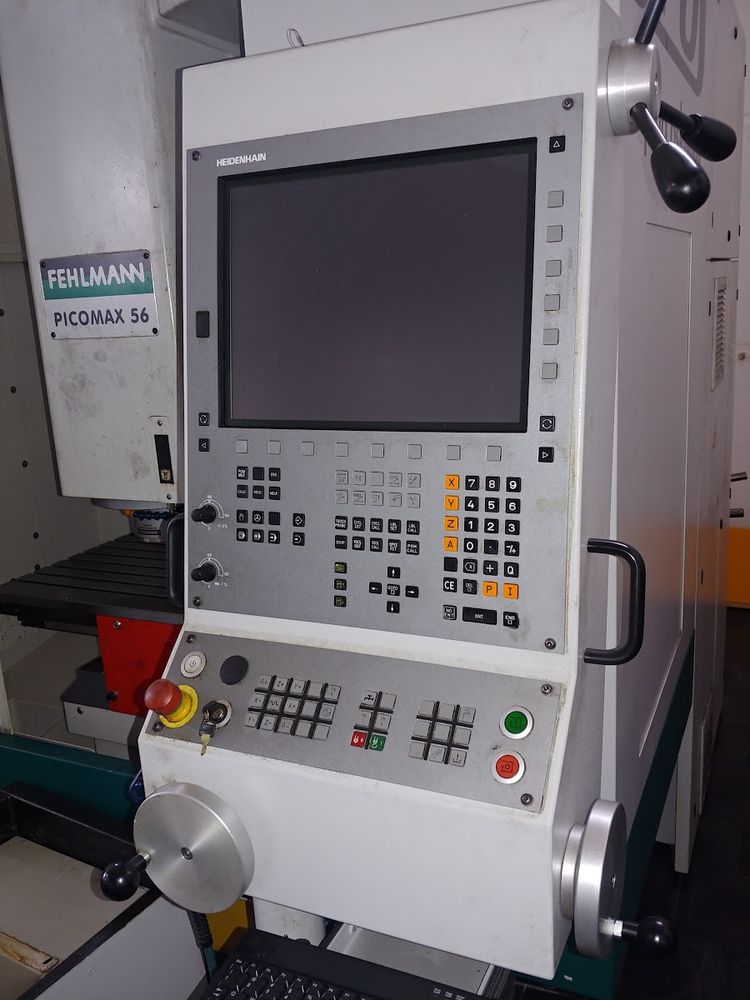

Control system Heidenhain TNC 620

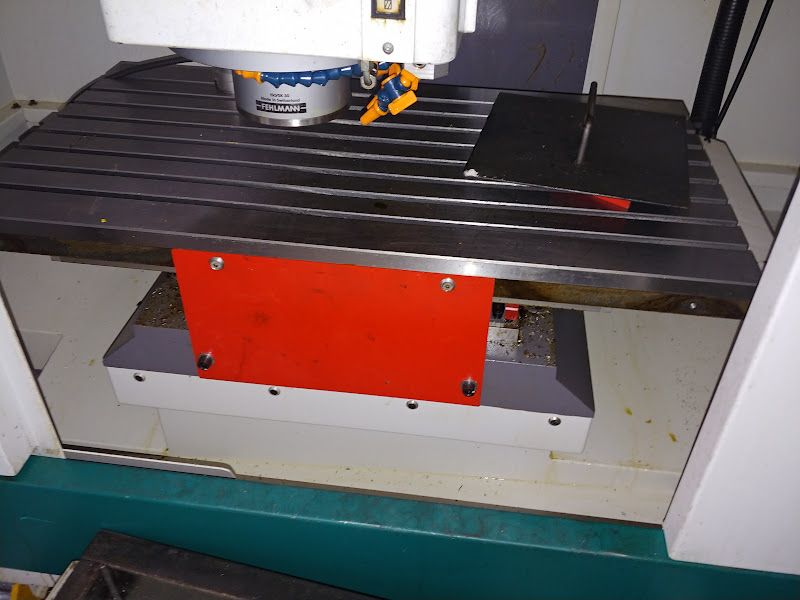

Dimensions of table working surface 908x480 mm
Travel X-axis 500 mm
Travel Y-axis 400 mm
Travel Z-axis 400 mm
Spindle speed 50 - 12000 /min.
Spindle taper SK 30 .

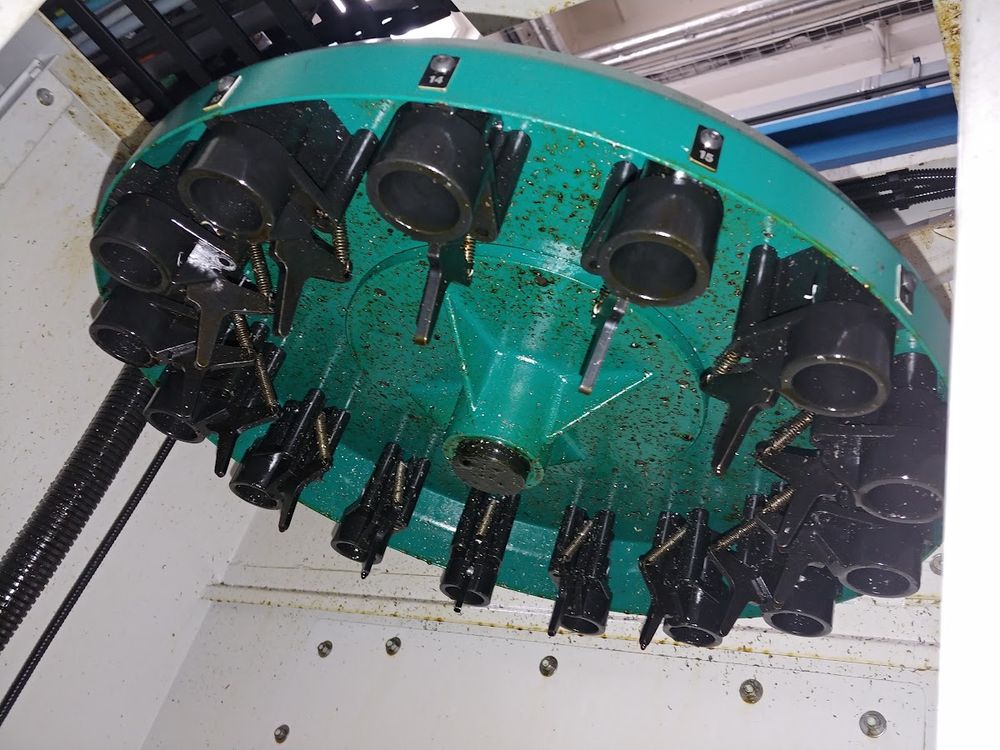

Tool magazine YES
Number of positions in magazine 20
Main motor power 9,5 kW
Machine weight 3000 kg
Cooling through spindle NO
Machine dimensions l x w x h 1700x1900x2500 mm
