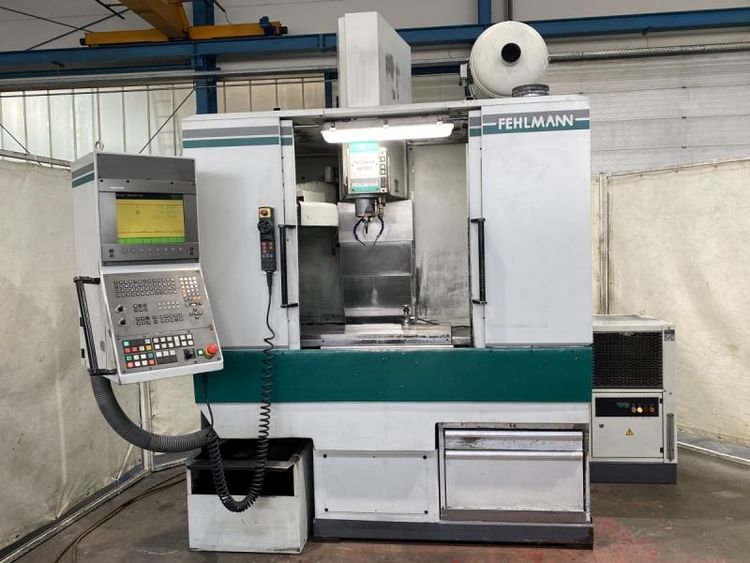

Fehlmann PICOMAX 60 3 Axis

X-Axis Travel: 500 mm
Y-Axis Travel: 350 mm
Z-Axis Travel: 610 mm
Feed Rate: 1 – 20,000 mm/min
Rapid Traverse: 20 m/min
Feed Force: 12,000 N
Table Size: 920 x 380 mm
T-Slots: 7 x 12-H8 mm
Max Table Load: 250 kg
Table Height: 1004 mm
Spindle Nose to Table Distance: 94 – 704 mm
Spindle Reach to Column: 405 mm
Spindle Speed: 50 – 18,000 rpm, Stepless
Spindle Drive Power: 10.2 kW (60% ED)
Max Torque: 70 Nm (up to 1240 rpm)
Spindle Taper: SK 30 / DIN 69871A
Drawbar: DIN 69872
Drilling Capacity in Steel: 25 mm
Milling Capacity in Steel / Aluminum: 100 / 700 cm³/min
Thread Cutting Capacity in Steel / Aluminum: M20 / M24
Tool Changer: 24 Places
Tool Change Time: 6 sec
Chip-to-Chip Time: 8 sec
CNC Control: HEIDENHAIN TNC 426
Power Supply: 400 V, 50 Hz
Total Power Consumption: 20 kW
Electronic Handwheel: HEIDENHAIN HR410
3D Probe: Renishaw MP12
Tool Measurement System
TFT Display
Direct Linear Measuring System
Coolant System: 200 L, Adjacent
Spindle Cooling Unit, Adjacent
Central Lubrication: Vogel
Air Supply: 6 bar, 40 – 200 L/min
Oil Mist Extraction
Control Operating Hours: 97,000 h
Machine Operating Hours: 80,000 h
Program Running Hours: 42,000 h
Machine Footprint: 2000 x 1700 x 3000 mm
Machine Weight: 3.2 ton
Good Condition
