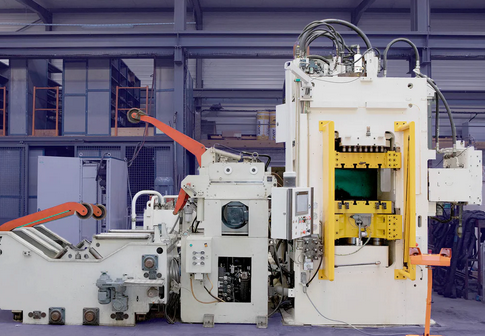

Feintool HFA 400 4000 kN
Ref :
2790736-3-MT
Condition :
Used
Manufacturer :
Feintool
Model :
HFA 400
Pressure :
4000 kN
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Total capacity: 4000 kN
Vee-ring indenter pressure: 1800 kN
Back pressure: 800 kN
Pushing ram force: 300 kN
Stripping force: 590 kN
Tool clamping surface (upper): 800 x 800 mm
Tool clamping surface (lower): 1000 x 810 mm
Cutting speed: 5 – 50 mm/s
Close traverse speed: 120 mm/s
Return traverse speed: 135 mm/s
Strokes: up to 150 / 230 c/min
Main motor: 75 kW
Total power: 82 kW
Voltage: 3 x 380 V / 50 Hz
Machine dimensions: 5000 x 3300 x 3360 mm
Machine weight: 21700 kg
CNC control
SIEMENS SIMATIC HMI
Roll feed
Belt feeding
Decoiler
